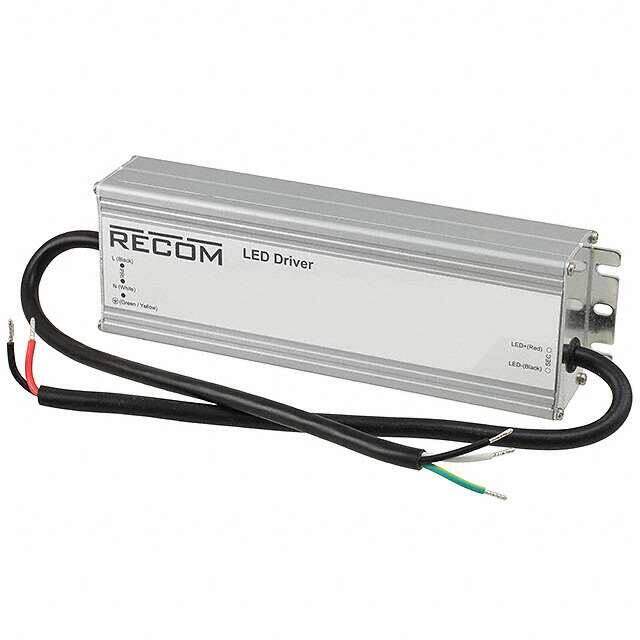

RACD150-12-PSE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED Drivers Power Supplies 150W 12V 11A PSE CERTIFIED
PDF
/
Inventory: 4930
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 2.4lbs 1.1kg
Technical
Operating Temperature -20°C~60°C
Series LIGHTLINE RACD150-PSE (150W)
Size / Dimension 8.74Lx2.68W x 1.54 H 222.0mmx68.0mmx39.0mm
Feature OCP, OTP, OVP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
ECCN Code EAR99
Type Constant Current, Voltage
Voltage - Rated 130V
Max Power Dissipation 150W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Termination Style Wire Leads
Number of Outputs 1
Approval Agency PSE
Efficiency 85%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 130VAC
Max Output Current 11A
Voltage - Output 1 12V
Voltage - Input (Min) 90VAC
Output Current 11A
Output Power 150W
Max Output Voltage 12V
Voltage - Output 9V~12V
Topology AC DC Converter
Current - Output 1 11A
Max Output Power 150W
Dimensions
Height 39mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP67
