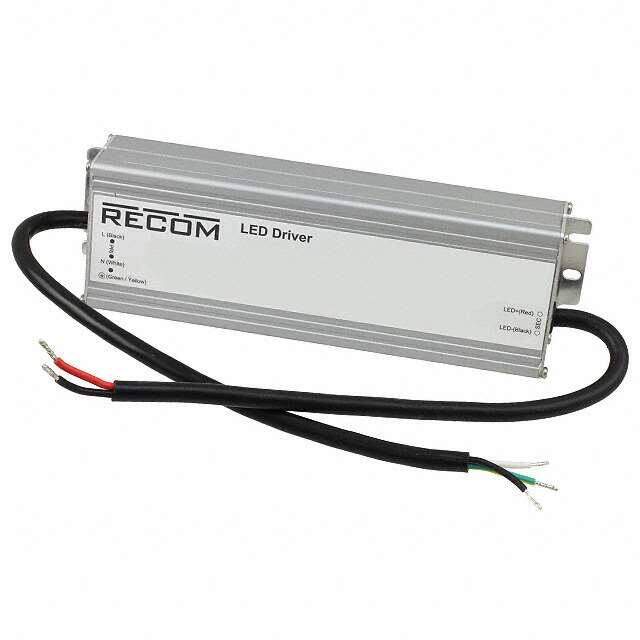

RACD100-48-PSE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED Drivers Power Supplies 100W 48V 2.1A PSE CERTIFIED
PDF
/
Inventory: 8071
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 39mm
Technical
Max Output Power 100W
Current - Output 1 2.1A
Topology AC DC Converter
Voltage - Output 34V~48V
Max Output Voltage 48V
Output Power 100W
Output Current 2.1A
Voltage - Input (Min) 90VAC
Voltage - Output 1 48V
Max Output Current 2.1A
Voltage - Input (Max) 130VAC
Voltage - Isolation 3.75kV
Efficiency 88%
Approval Agency PSE
Number of Outputs 1
Termination Style Wire Leads
Max Power Dissipation 100W
Voltage - Rated 130V
Type Constant Current, Voltage
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP, OTP, OVP, SCP
Size / Dimension 8.74Lx2.68W x 1.54 H 222.0mmx68.0mmx39.0mm
Series LIGHTLINE RACD100-PSE (100W)
Operating Temperature -20°C~60°C
Physical
Weight 2.3lbs 1kg
Mounting Type Chassis Mount
Mount Chassis Mount
