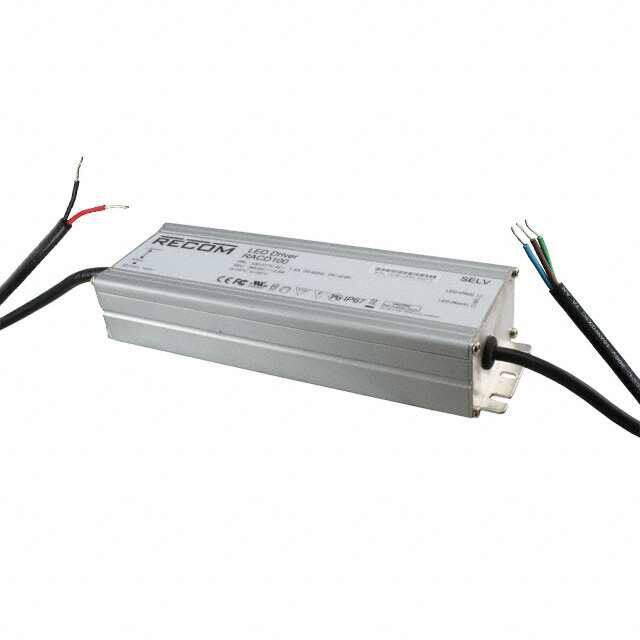

RACD100-36
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DVR CC/CV AC/DC 26-36V 2.8A
PDF
/
Inventory: 8201
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 39mm
Technical
Max Output Power 100W
Current - Output 1 2.8A
Topology AC DC Converter
Voltage - Output 26V~36V
Max Output Voltage 36V
Output Power 100W
Output Current 2.8A
Voltage - Input (Min) 90VAC
Voltage - Output 1 36V
Max Output Current 2.8A
Voltage - Input (Max) 305VAC
Voltage - Isolation 3.75kV
Efficiency 90%
Approval Agency CE, EN, UL
Number of Outputs 1
Termination Style Wire Leads
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Max Power Dissipation 100W
Voltage - Rated 430V
Type Constant Current, Voltage
ECCN Code EAR99
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP, OTP, OVP, SCP
Size / Dimension 8.74Lx2.68W x 1.54 H 222.0mmx68.0mmx39.0mm
Series LIGHTLINE RACD100 (100W)
Operating Temperature -30°C~70°C
Physical
Weight 2.1lbs 952.5g
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount
