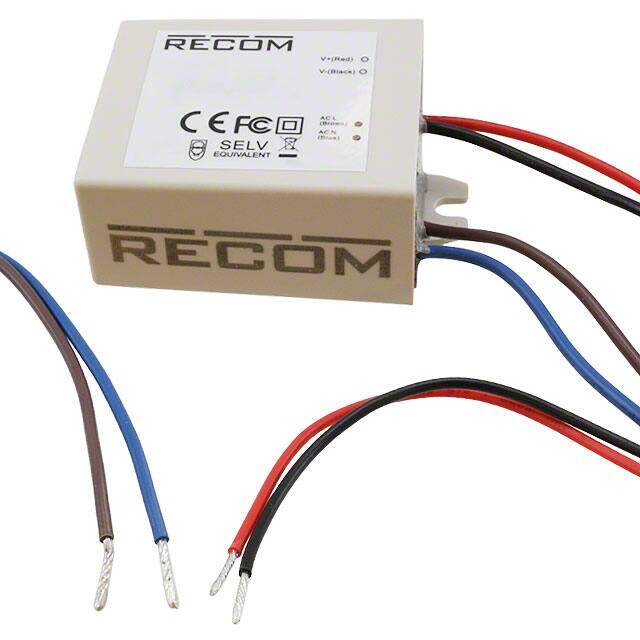

RACD07-700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED Drivers Power Supplies 7W 11V 700 mA ST LED DRIVER
PDF
/
Buying Options
Total Price: USD $14.33
Unit Price: USD $14.3264
≥1 USD $14.3264
≥10 USD $13.61184
≥100 USD $12.89464
≥500 USD $12.53648
≥1000 USD $11.640992
≥3000 USD $11.103752
Inventory: 587
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 24mm
Technical
Max Output Power 7W
Current - Output 1 700mA
Topology AC DC Converter
Voltage - Output 3V~10.5V
Max Output Voltage 10.5V
Output Power 7W
Output Current 700mA
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Voltage - Input (Min) 90VAC
Voltage - Output 1 11V
Max Output Current 700mA
Lead Length 150mm
Output Voltage 11V
Voltage - Input (Max) 295VAC
Voltage - Isolation 3.75kV
Efficiency 70%
Approval Agency CE, cULus, LVD
Number of Outputs 1
Termination Style Wire Leads
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 41mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology HYBRID
Max Power Dissipation 7W
Voltage - Rated 295V
Type Constant Current
ECCN Code EAR99
Termination Wire Leads
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 1.93Lx1.61W x 0.94 H 49.0mmx41.0mmx24.0mm
Series LIGHTLINE RACD07 (7W)
Operating Temperature -20°C~40°C
Physical
Weight 0.163lb 73.94g
Number of Pins 4
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
