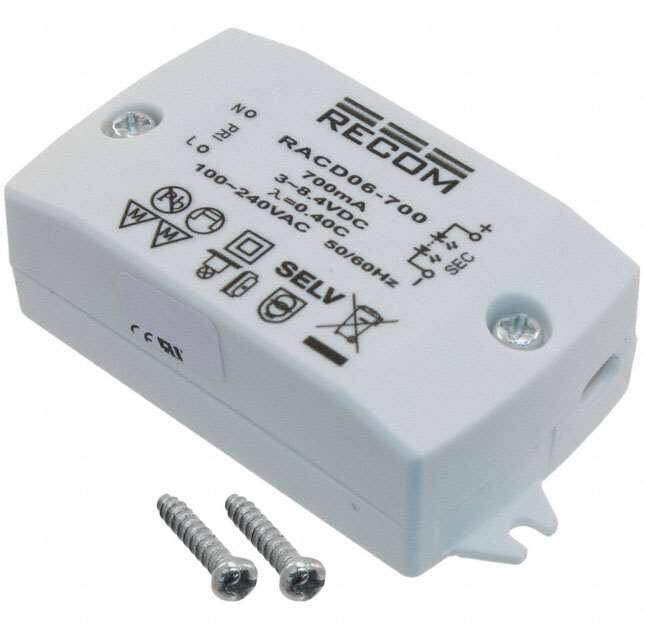

RACD06-700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 3-12V 700MA
PDF
/
Buying Options
Total Price: USD $13.37
Unit Price: USD $13.3672
≥1 USD $13.3672
≥10 USD $12.6984
≥100 USD $12.03048
≥500 USD $11.696608
≥1000 USD $10.861136
≥3000 USD $10.359888
Inventory: 354
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Number of Pins 4
Weight 0.075lb 34.02g
Technical
Operating Temperature -20°C~65°C
Series LIGHTLINE RACD06 (6W)
Size / Dimension 2.68Lx1.38W x 0.79 H 68.0mmx35.0mmx20.0mm
Feature OCP, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Terminal Block
ECCN Code EAR99
Type Constant Current
Voltage - Rated 370V
Max Power Dissipation 6W
Technology HYBRID
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 20mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Termination Style Screw Terminal
Number of Outputs 1
Approval Agency CE, cULus
Efficiency 65%
Voltage - Isolation 3kV
Voltage - Input (Max) 264VAC
Max Output Current 700mA
Voltage - Output 1 8.5V
Voltage - Input (Min) 90VAC
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Max Supply Voltage 264V
Min Supply Voltage 90V
Output Current 700mA
Output Power 6W
Max Output Voltage 12V
Voltage - Output 3V~12V
Topology AC DC Converter
Current - Output 1 700mA
Max Output Power 6W
Input Current 120mA
Number of Segments 12
Max Supply Voltage (AC) 264V
Min Supply Voltage (AC) 90V
Dimensions
Height 21mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP20
