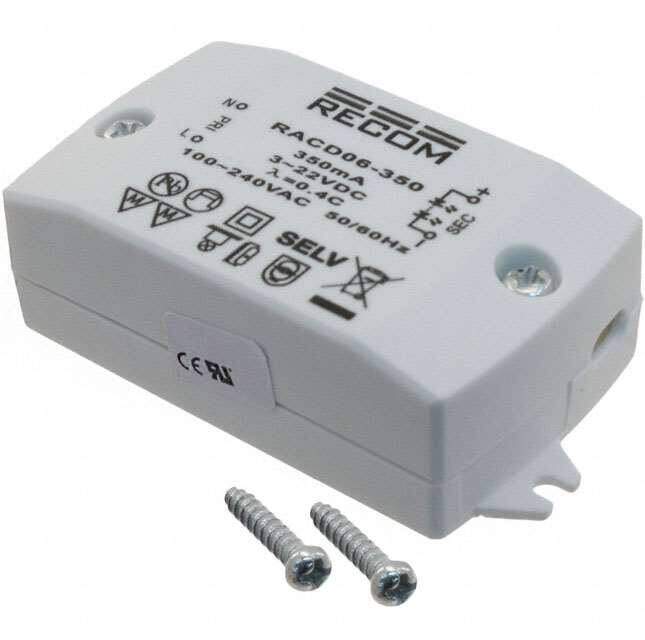

RACD06-350
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 3-24V 350MA
PDF
/
Buying Options
Total Price: USD $13.37
Unit Price: USD $13.3672
≥1 USD $13.3672
≥10 USD $12.6984
≥100 USD $12.03048
≥500 USD $11.696608
≥1000 USD $10.861136
≥3000 USD $10.359888
Inventory: 468
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 21mm
Technical
Min Supply Voltage (AC) 90V
Max Supply Voltage (AC) 264V
Number of Segments 12
Input Current 120mA
Max Output Power 6W
Current - Output 1 350mA
Topology AC DC Converter
Voltage - Output 3V~24V
Max Output Voltage 24V
Output Power 6W
Output Current 350mA
Min Supply Voltage 90V
Max Supply Voltage 264V
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Voltage - Input (Min) 90VAC
Voltage - Output 1 21V
Max Output Current 350mA
Voltage - Input (Max) 264VAC
Voltage - Isolation 3kV
Efficiency 65%
Approval Agency CE, cULus
Number of Outputs 1
Termination Style Screw Terminal
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 20mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Technology HYBRID
Max Power Dissipation 6W
Voltage - Rated 264V
Type Constant Current
ECCN Code EAR99
Termination Terminal Block
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OTP, OVP, SCP
Size / Dimension 2.68Lx1.38W x 0.79 H 68.0mmx35.0mmx20.0mm
Series LIGHTLINE RACD06 (6W)
Operating Temperature -20°C~65°C
Physical
Weight 0.075lb 34.02g
Number of Pins 4
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 9 Weeks
