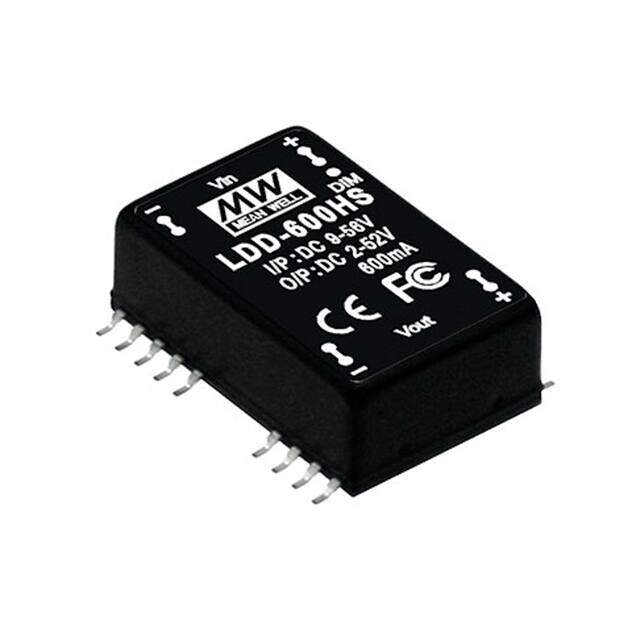

LDD-600HS
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 18 Leads
Category Power Supplies - Board Mount / LED Drivers
Description
LED DRIVER CC BUCK 2-52V 600MA
PDF
/
Buying Options
Total Price: USD $10.81
Unit Price: USD $10.8064
≥1 USD $10.8064
Inventory: 50
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 24-SMD Module, 18 Leads
Number of Pins 18
Weight 12.800008g
Technical
Operating Temperature -40°C~85°C
Series LDD-H
Size / Dimension 1.25Lx0.80W x 0.45 H 31.8mmx20.3mmx11.4mm
Feature Remote On/Off, OTP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Constant Current
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 240
Number of Functions 1
Supply Voltage 48V
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PDSO-G9
Number of Outputs 1
Approval Agency CE
Efficiency 96%
Voltage - Input (Max) 56V
Voltage - Output 1 24V
Voltage - Input (Min) 9V
Supply Voltage-Max (Vsup) 56V
Supply Voltage-Min (Vsup) 9V
Max Supply Current 550mA
Output Power 31.2W
Voltage - Output 2V~52V
Topology Buck
Current - Output 1 600mA
Dimming PWM
Multiplexed Display Capability NO
Dimensions
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
