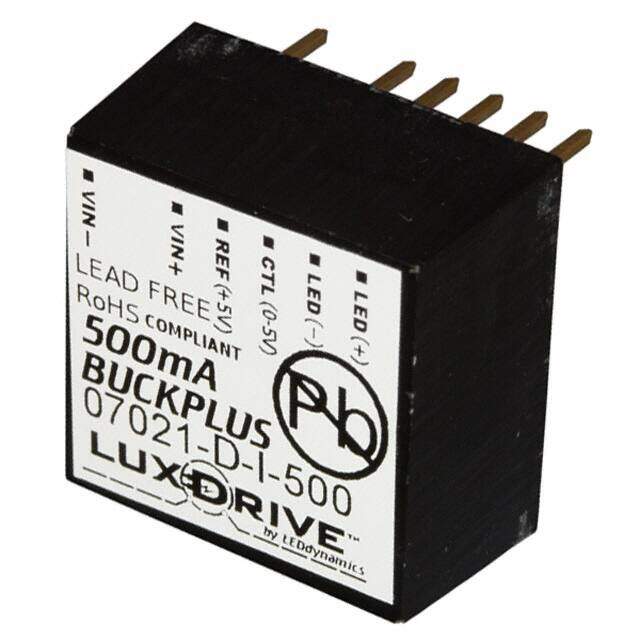

7021-D-I-500
RoHS
/
Package 7-SIP Module
Category Power Supplies - Board Mount / LED Drivers
Description
LED SUPP CC BUCK 32V 500MA 7SIP
PDF
/
Buying Options
Total Price: USD $42.03
Unit Price: USD $42.032494
≥1 USD $42.032494
≥200 USD $16.772298
≥500 USD $16.211689
≥1000 USD $15.934667
Inventory: 2501
Minimum: 1
-
+
Technical Details
Technical
Topology Buck
Min Input Voltage 7V
Max Input Voltage 32V
Dimming Analog
Voltage - Output 32V Max
Current - Output (Max) 500mA
Voltage - Input (Min) 7V
Max Output Current 500mA
Voltage - Input (Max) 32V
Efficiency 95%
Number of Outputs 1
Max Power Dissipation 16W
Power (Watts) 16W
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Type Constant Current
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, SCP
Size / Dimension 0.83Lx0.83W x 0.43 H 21.1mmx21.1mmx10.9mm
Series BuckPlus? 7021
Published 2011
Packaging Bulk
Operating Temperature -40°C~80°C
Dimensions
Height 10.922mm
Length 21.082mm
Width 21.082mm
Compliance
RoHS Status Non-RoHS Compliant
Physical
Package / Case 7-SIP Module
Mounting Type Through Hole
Mount Through Hole
