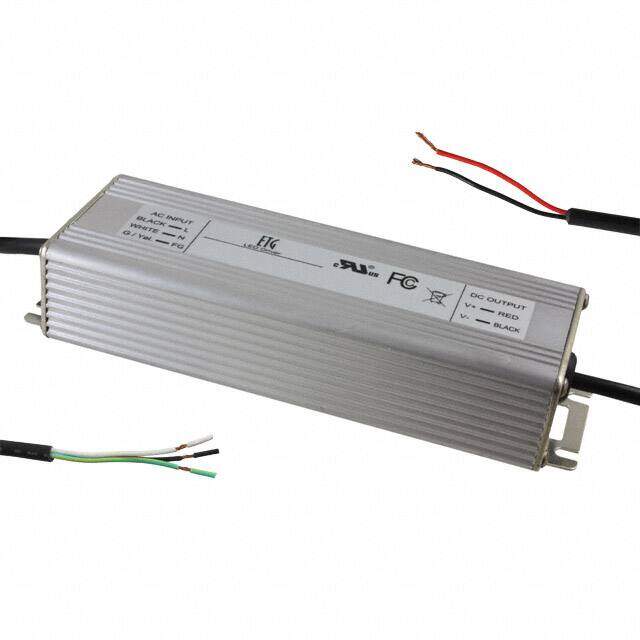

LDP100-360-00
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DVR CC/CV AC/DC 18-34V 2.66A
PDF
/
Buying Options
Total Price: USD $34.13
Unit Price: USD $34.1264
≥1 USD $34.1264
Inventory: 95
Minimum: 1
-
+
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~60°C
Published 2010
Series LDP100 (96W)
Size / Dimension 8.23Lx2.68W x 1.58 H 209.0mmx68.0mmx40.0mm
Feature OCP, OVP, SCP
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Constant Current, Voltage
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Power (Watts) 96W
Max Power Dissipation 96W
Termination Style Wire Leads
Number of Outputs 1
Approval Agency cULus, EN
Efficiency 86%
Voltage - Input (Max) 264VAC
Max Output Current 2.66A
Voltage - Input (Min) 90VAC
Current - Output (Max) 2.66A
Voltage - Output 18V~34V
Topology AC DC Converter
Dimensions
Height 40.132mm
Length 209.042mm
Width 68.072mm
Compliance
RoHS Status Non-RoHS Compliant
Ratings IP65
