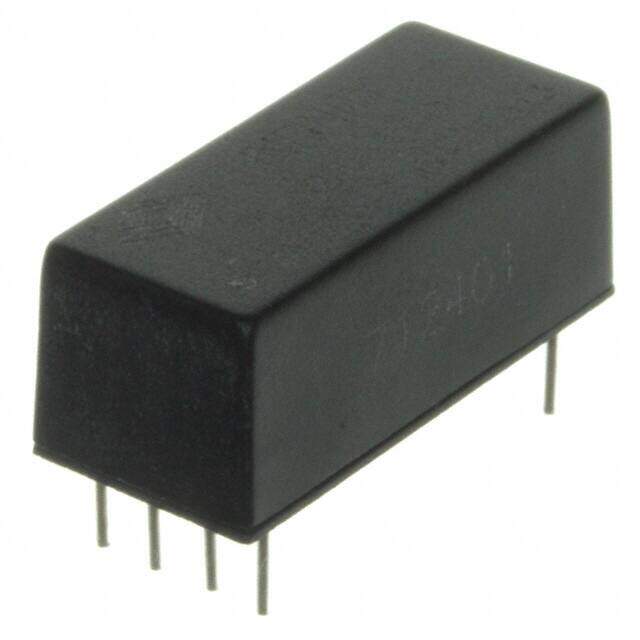

VLD24-700
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / LED Drivers
Description
LED SUPPLY CC BUCK 2-30V 700MA
PDF
/
Buying Options
Total Price: USD $18.09
Unit Price: USD $18.093075
≥1 USD $18.093075
≥200 USD $7.219637
≥500 USD $6.978064
≥1000 USD $6.85859
Inventory: 7642
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 9.398mm
Technical
Dimming Analog, PWM
Topology Buck
Voltage - Output 2V~30V
Voltage - Input (Min) 6.5V
Max Output Current 700mA
Voltage - Input (Max) 36V
Efficiency 96%
Number of Outputs 1
Reach Compliance Code unknown
Max Power Dissipation 21W
Power (Watts) 21W
Type Constant Current
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.90Lx0.40W x 0.37 H 22.9mmx10.2mmx9.5mm
Series VLD24
Published 2011
Packaging Tube
Operating Temperature -40°C~71°C
Physical
Weight 0.008lb 3.63g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
