GS040203
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Keypad Switches
Description

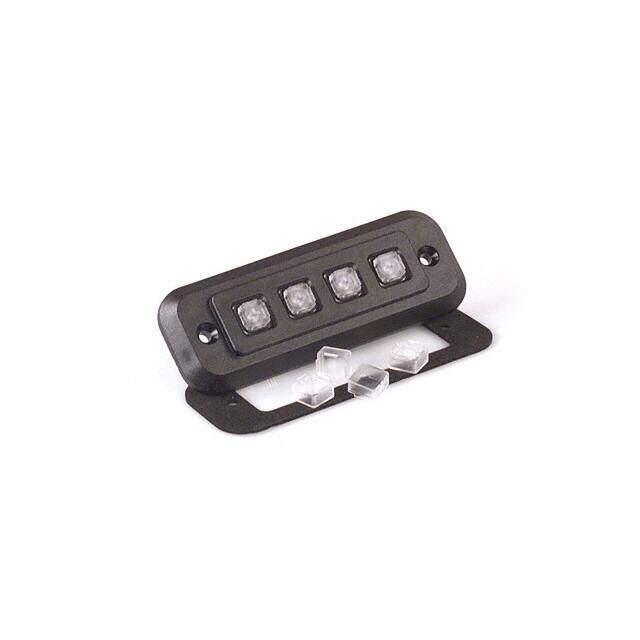

SWITCH KEYPAD 4 KEY 0.05A 24V
PDF
/
Buying Options
Total Price: USD $30.14
Unit Price: USD $30.14
≥1 USD $30.14
≥10 USD $27.20696
≥100 USD $23.622984
Inventory: 145
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP54, Water Resistant
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 42.5mm
Height 119mm
Technical
Key Color Transparent
Operational Life 2,000,000 Cycles
Legend Type Interchangeable
Matrix (Columns x Rows) 1 x 4
Key Type Transparent Key Cap
Number of Switches 4
Legend Customizable (Sold Separate)
Contact Rating @ Voltage 0.05A @ 24VDC
Switch Type Conductive Rubber
Illumination Non-Illuminated
Panel Cutout Dimensions Rectangular - 82.50mm x 25.50mm
Output Type Matrix
Housing Color Black
Approval Agency CE
Termination Style Pin Header
Current Rating 50mA
Ingress Protection IP54 - Dust Protected, Water Resistant
Voltage - Rated DC 24V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GFX
Published 2000
Operating Temperature -20°C~60°C
Physical
Mounting Type Panel Mount, Front or Rear
Mount Panel
Contact Material Gold
Supply Chain
Factory Lead Time 4 Weeks
