70120203
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Keypad Switches
Description

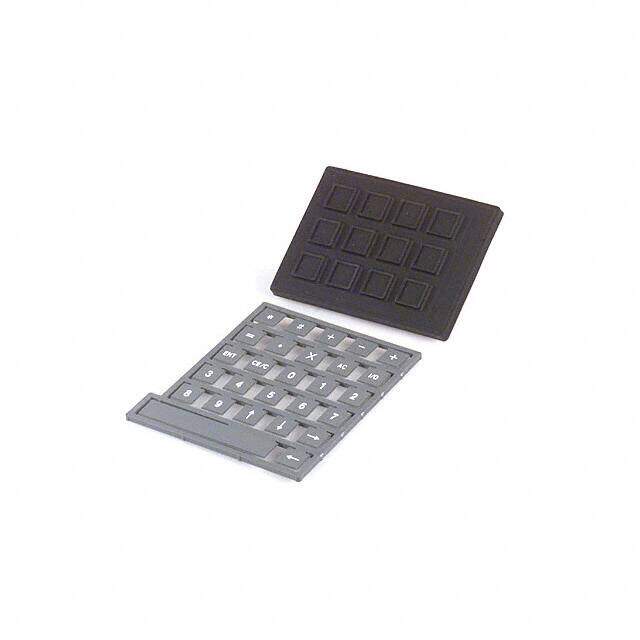

STORM INTERFACE 70120203 SWITCH, KEYPAD, 3X4, 50mA, 24V, RUBBER
PDF
/
Buying Options
Total Price: USD $38.84
Unit Price: USD $38.8432
≥1 USD $38.8432
≥10 USD $36.56136
≥100 USD $35.419296
≥500 USD $33.133936
≥1000 USD $31.305912
≥3000 USD $30.391891
Inventory: 89
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 70mm
Height 96mm
Technical
Legend Color White
Key Color Gray
Operational Life 2,000,000 Cycles
Legend Type Interchangeable
Matrix (Columns x Rows) 3 x 4
Key Type Rubber Overlay
Number of Switches 12
Legend Customizable (Included)
Contact Rating @ Voltage 0.05A @ 24VDC
Contact Current Rating 50mA
Switch Type Conductive Rubber
Illumination Non-Illuminated
Output Type Matrix
Housing Color Black
Approval Agency CE
Termination Style Pin Header
Current Rating 50mA
Ingress Protection IP67 - Dust Tight, Waterproof
Color Black, White
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Black Housing
Series 700
Published 2007
Operating Temperature -55°C~125°C
Physical
Housing Material Rubber
Mounting Type Panel Mount, Front or Rear
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
