LBW7K-2T1VB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Keylock Switches
Description

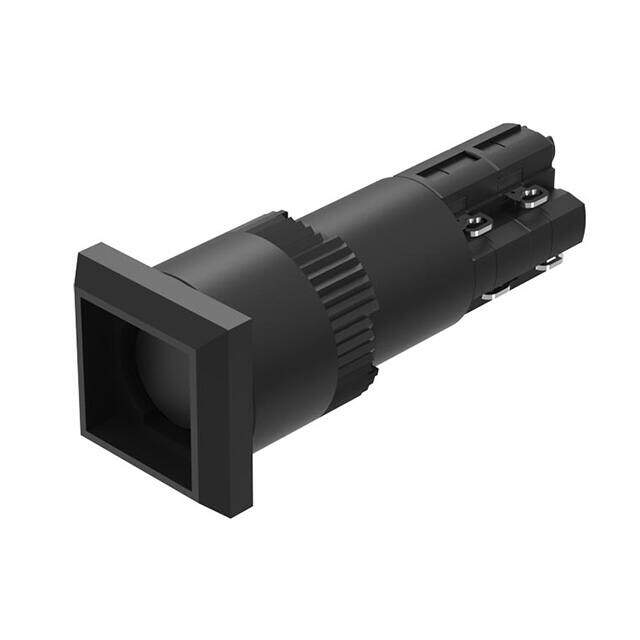

Flat Key LBW 2 Panel Mount Keylock Switch 27.90mm 100mA AC/DC 125V 90°
PDF
/
Inventory: 1544
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Key Removable Positions Left
Depth Behind Flange 27.90mm
Angle of Throw 90°
Contact Timing Not Specified
Switch Type KEYLOCK SWITCH
Mechanical Life 250,000 Cycles
Electrical Life 50,000 Cycles
Panel Cutout Dimensions Square - 22.50mm2
Switch Function On-On
Circuit SPDT
Actuator Type Flat Key
Voltage - Rated AC 125V
Termination Style PC Pin
Contact Finish Gold
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 30V
Number of Positions 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LBW
Operating Temperature -25°C~60°C
Physical
Mounting Type Panel Mount
Contact Material Silver (Ag)
Supply Chain
Factory Lead Time 4 Weeks
