LK6PNB126N3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Keylock Switches
Description

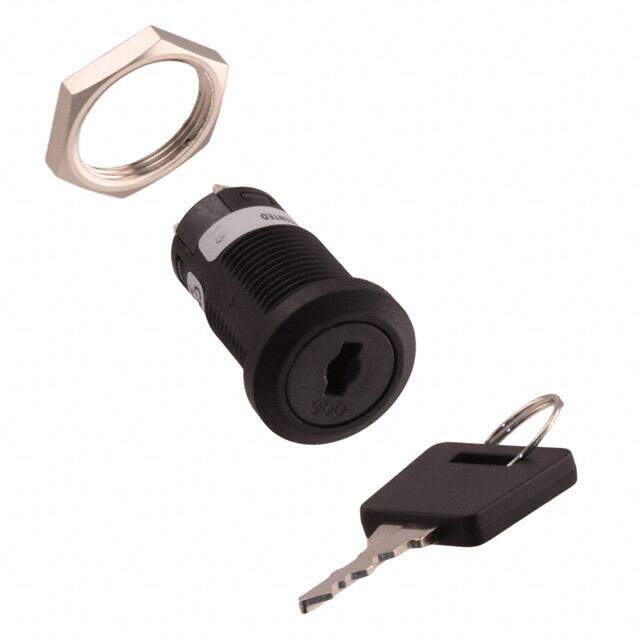

Flat Key LK 2 Panel Mount Keylock Switch 27.55mm 4A AC/DC 125V 90°
PDF
/
Buying Options
Total Price: USD $14.47
Unit Price: USD $14.474764
≥1 USD $14.474764
≥10 USD $13.65544
≥100 USD $12.882485
≥500 USD $12.153291
≥1000 USD $11.46537
Inventory: 1189
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Key Removable Positions 2 only
Depth Behind Flange 27.55mm
Angle of Throw 90°
Contact Timing Not Specified
Switch Type KEYLOCK SWITCH
Mechanical Life 6,000 Cycles
Electrical Life 6,000 Cycles
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Flat Key
Voltage - Rated AC 125V
Termination Style Solder Lug
Contact Finish Gold
Current Rating (Amps) 4A AC/DC
Voltage - Rated DC 28V
Number of Positions 2
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LK
Operating Temperature -30°C~85°C
Physical
Mounting Type Panel Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
