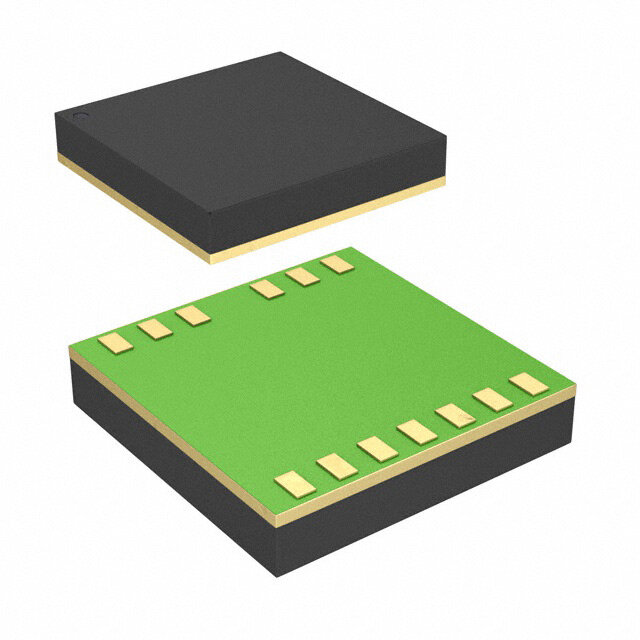

UCC21225ANPLR
RoHS
RoHS compliant
RoHS compliantPackage 13-VFLGA
Category Isolators / Isolators - Gate Drivers
Description
UCC21225ANPLR
PDF
/
Buying Options
Total Price: USD $3.58
Unit Price: USD $3.5816
≥1 USD $3.5816
≥10 USD $3.21728
≥100 USD $3.041632
≥500 USD $2.636128
≥1000 USD $2.50096
≥3000 USD $2.244088
Inventory: 5522
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 910μm
Width 5mm
Length 5mm
Height 1mm
Technical
Supply Voltage1-Min 6.5V
Voltage - Output Supply 3V~18V
Pulse Width Distortion (Max) 6ns
Turn Off Time 0.03 μs
High Side Driver YES
Supply Voltage1-Nom 12V
Common Mode Transient Immunity (Min) 100V/ns
Propagation Delay tpLH / tpHL (Max) 30ns, 30ns
Turn On Time 0.03 μs
Interface IC Type HALF BRIDGE BASED IGBT/MOSFET DRIVER
Rise / Fall Time (Typ) 6ns 7ns
Current - Output High, Low 4A 6A
Output Current-Max 6A
Number of Channels 2
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 18V
Working Voltage 792V
Voltage - Isolation 2500Vrms
Approval Agency CQC, CSA, UR, VDE
Base Part Number UCC21225
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position BOTTOM
Technology Capacitive Coupling
Number of Terminations 13
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 13
Surface Mount YES
Package / Case 13-VFLGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
Alternative Model
