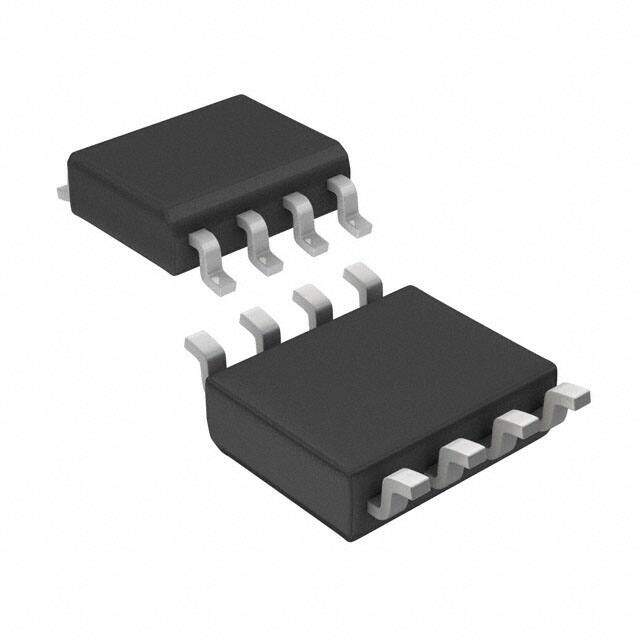

STGAP2SMTR
RoHS
/
Package 8-SOIC (0.154, 3.90mm Width)
Category Isolators / Isolators - Gate Drivers
Description
8-SOIC (0.154 3.90mm Width) 1 BUFFER OR INVERTER BASED IGBT DRIVER Magnetic Coupling Gate Driver 100V/ns 1700VDC 4A 4A -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.9976
≥1 USD $1.9976
≥10 USD $1.7952
≥100 USD $1.693824
≥500 USD $1.443112
≥1000 USD $1.355059
≥3000 USD $1.185677
Inventory: 1674
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Voltage - Output Supply 3V~5.5V
Pulse Width Distortion (Max) 20ns
Common Mode Transient Immunity (Min) 100V/ns
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Interface IC Type BUFFER OR INVERTER BASED IGBT DRIVER
Rise / Fall Time (Typ) 30ns 30ns
Current - Output High, Low 4A 4A
Number of Channels 1
Voltage - Isolation 1700VDC
Base Part Number STGAP
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology Magnetic Coupling
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Package / Case 8-SOIC (0.154, 3.90mm Width)
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
