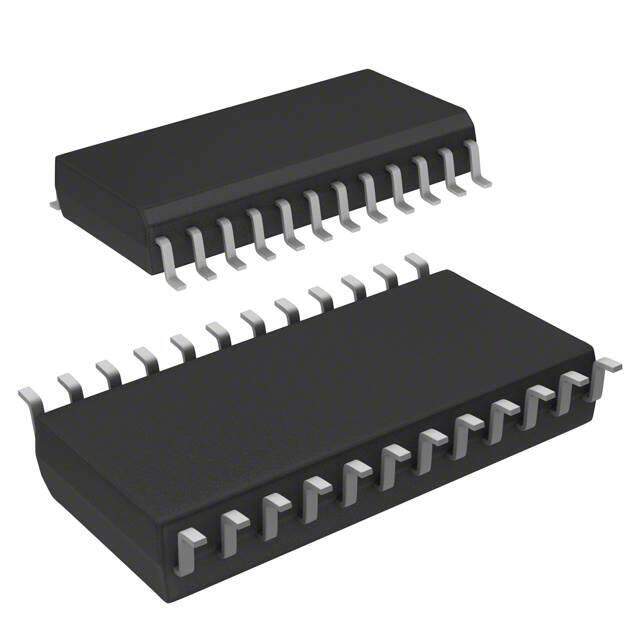

STGAP1STR
RoHS
RoHS compliant
RoHS compliantPackage 24-SOIC (0.295, 7.50mm Width)
Category Isolators / Isolators - Gate Drivers
Description
DGTL ISO 2.5KV 1CH GATE DVR 24SO
PDF
/
Inventory: 2233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output Supply 4.5V~36V
Pulse Width Distortion (PWD) 10 ns
Propagation Delay tpLH / tpHL (Max) 130ns, 130ns
Interface IC Type BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
Rise / Fall Time (Typ) 25ns 25ns Max
Current - Output High, Low 2.5A 2.5A
Propagation Delay 130 ns
Number of Channels 1
Voltage - Isolation 2500Vrms
Approval Agency UL
Base Part Number STGAP
Technology Magnetic Coupling
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series Automotive, AEC-Q100, gapDRIVE?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 24
Package / Case 24-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Mount Surface Mount
