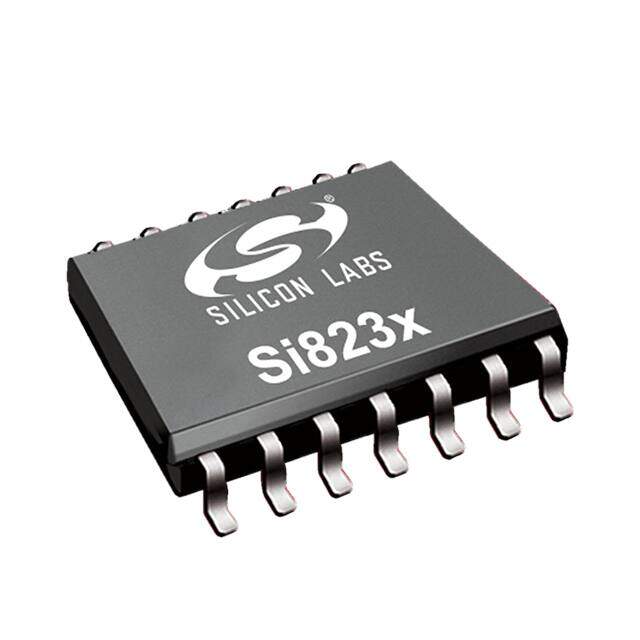

SI8238BD-D-IS3
RoHS
RoHS compliant
RoHS compliantPackage 14-SOIC (0.295, 7.50mm Width)
Category Isolators / Isolators - Gate Drivers
Description
DUAL ISOLATED GATE DRIVER, 8 MM
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8344
≥1 USD $5.8344
≥10 USD $5.27384
≥100 USD $5.028822
≥500 USD $4.366525
≥1000 USD $4.170241
≥3000 USD $3.802278
Inventory: 109
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - Peak Output 4A
Voltage - Output Supply 6.5V~24V
Pulse Width Distortion (Max) 5.6ns
Common Mode Transient Immunity (Min) 45kV/μs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Rise / Fall Time (Typ) 12ns 12ns
Current - Output High, Low 2A 4A
Number of Channels 2
Voltage - Isolation 5000Vrms
Approval Agency CQC, CSA, UR, VDE
Reach Compliance Code compliant
Technology Capacitive Coupling
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Automotive, AEC-Q100
Published 2017
Packaging Tube
Operating Temperature -40°C~125°C
Physical
Package / Case 14-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
