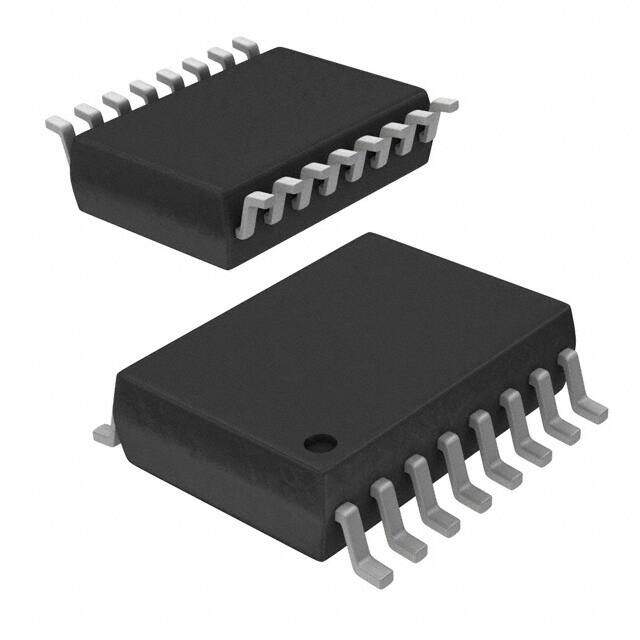

FOD8318V
RoHS
RoHS compliant
RoHS compliantPackage 16-SOIC (0.295, 7.50mm Width)
Category Isolators / Isolators - Gate Drivers
Description
Logic Output Optocouplers 2.5A OUT PUSH-PULL
PDF
/
Buying Options
Total Price: USD $9.84
Unit Price: USD $9.841498
≥1 USD $9.841498
≥200 USD $3.808723
≥500 USD $3.674807
≥1000 USD $3.609162
Inventory: 3618
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 10.3mm
Height 3mm
Technical
Voltage - Output Supply 15V~30V
Pulse Width Distortion (PWD) 300 ns
Turn Off Time 0.5 μs
High Side Driver YES
Common Mode Transient Immunity (Min) 35kV/μs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Turn On Time 0.5 μs
Interface IC Type HALF BRIDGE BASED MOSFET DRIVER
Rise / Fall Time (Typ) 34ns, 34ns
Fall Time (Typ) 34 ns
Rise Time 34 ns
Current - Output High, Low 2.5A 2.5A
Max Output Voltage 30V
Propagation Delay 500 ns
Number of Channels 1
Supply Voltage-Max (Vsup) 5.5V
Operating Supply Voltage 30V
Max Output Current 3A
Output Voltage 30V
Voltage - Isolation 4243Vrms
Approval Agency IEC/EN/DIN, UL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology Optical Coupling
Max Power Dissipation 100mW
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2015
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 758mg
Number of Pins 16
Package / Case 16-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 24 Weeks
