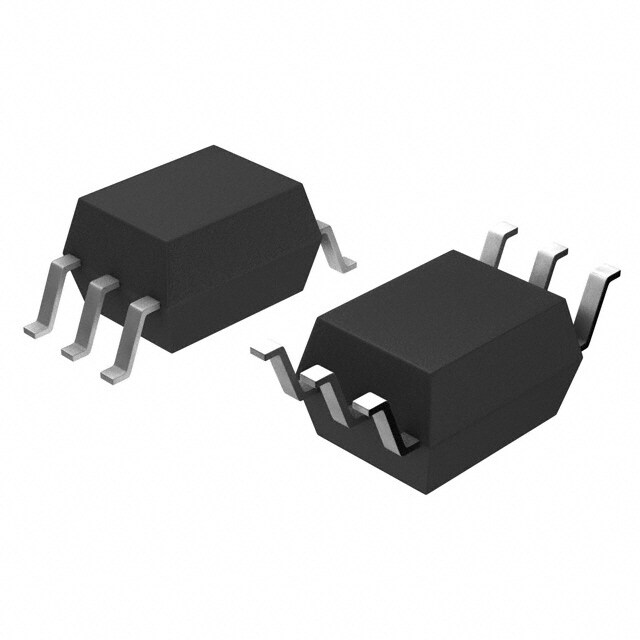

IS341W
RoHS
RoHS compliant
RoHS compliantPackage 6-SOIC (0.268, 6.80mm Width)
Category Isolators / Isolators - Gate Drivers
Description
6 PIN IGBT GATE DRIVEWIDE BODY &
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.7512
≥1 USD $1.7512
≥10 USD $1.16512
≥100 USD $0.89672
≥500 USD $0.810586
Inventory: 312
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Peak Output 3A
Voltage - Output Supply 15V~30V
Pulse Width Distortion (Max) 70ns
Common Mode Transient Immunity (Min) 20kV/μs
Propagation Delay tpLH / tpHL (Max) 200ns, 200ns
Current - DC Forward (If) (Max) 25mA
Rise / Fall Time (Typ) 35ns 35ns
Current - Output High, Low 2.5A 2.5A
Voltage - Forward (Vf) (Typ) 1.37V
Number of Channels 1
Voltage - Isolation 5000Vrms
Technology Optical Coupling
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Supplier Device Package 6-SO Stretched
Package / Case 6-SOIC (0.268, 6.80mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 2 Weeks
