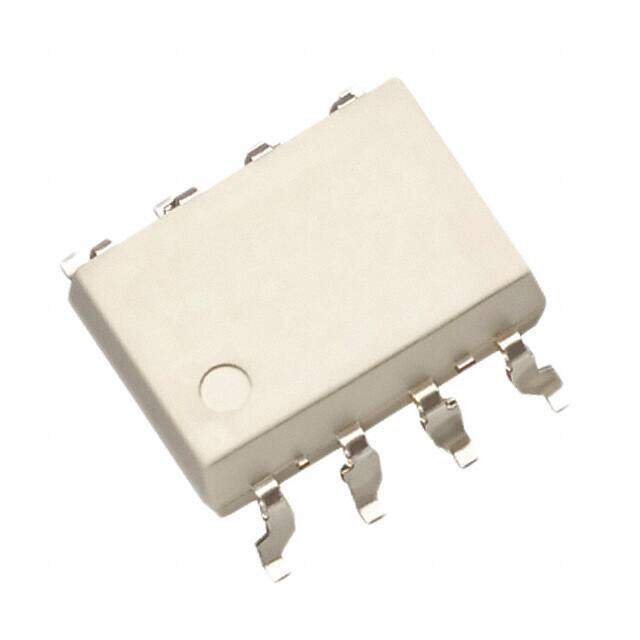

PS9531L3-AX
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD, Gull Wing
Category Isolators / Isolators - Gate Drivers
Description
OPTOISO 5KV 1CH GATE DRIVER 8SMD
PDF
/
Buying Options
Total Price: USD $3.25
Unit Price: USD $3.2472
≥1 USD $3.2472
≥10 USD $2.295744
≥100 USD $1.880384
≥500 USD $1.585179
≥1000 USD $1.453989
≥3000 USD $1.393858
Inventory: 1018
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD, Gull Wing
Supplier Device Package 8-SMD
Technical
Operating Temperature -40°C~125°C
Packaging Tube
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Technology Optical Coupling
Approval Agency CSA, SEMKO, UL
Voltage - Isolation 5000Vrms
Max Output Current 2.5A
Number of Channels 1
Voltage - Forward (Vf) (Typ) 1.56V
Propagation Delay 175 ns
Current - Output High, Low 2A 2A
Forward Voltage 1.56V
Rise / Fall Time (Typ) 40ns 40ns
High Level Output Current 2A
Low Level Output Current 2A
Current - DC Forward (If) (Max) 25mA
Propagation Delay tpLH / tpHL (Max) 175ns, 175ns
Common Mode Transient Immunity (Min) 50kV/μs
Pulse Width Distortion (PWD) 75 ns
Pulse Width Distortion (Max) 75ns
Voltage - Output Supply 15V~30V
Current - Peak Output 2.5A
Compliance
RoHS Status ROHS3 Compliant
