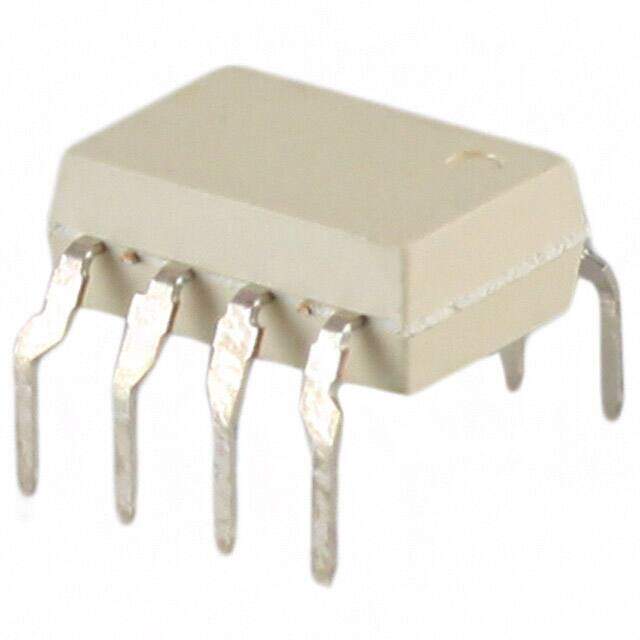

PS9505L1-AX
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP (0.400, 10.16mm)
Category Isolators / Isolators - Gate Drivers
Description
OPTOISO 5KV 1CH GATE DRIVER 8DIP
PDF
/
Inventory: 5468
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Current - Peak Output 2.5A
Voltage - Output Supply 15V~30V
Pulse Width Distortion (Max) 100ns
Pulse Width Distortion (PWD) 100 ns
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 250ns, 250ns
Current - DC Forward (If) (Max) 25mA
Low Level Output Current 2A
High Level Output Current 2A
Max Input Current 16mA
Rise / Fall Time (Typ) 50ns 50ns
Forward Voltage 1.56V
Current - Output High, Low 2A 2A
Propagation Delay 250 ns
Voltage - Forward (Vf) (Typ) 1.56V
Number of Channels 1
Max Output Current 2.5A
Voltage - Isolation 5000Vrms
Approval Agency CSA, SEMKO, UL
Technology Optical Coupling
Max Power Dissipation 300mW
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Packaging Bulk
Operating Temperature -40°C~110°C
Physical
Supplier Device Package 8-DIP
Package / Case 8-DIP (0.400, 10.16mm)
Mounting Type Through Hole
Mount Through Hole
