XR88C92IJTR-F
RoHS
RoHS compliant

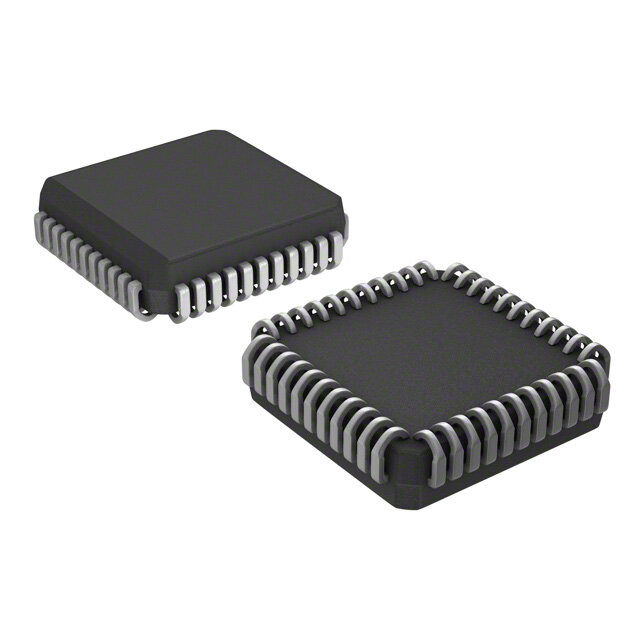

RoHS compliantPackage 44-LCC (J-Lead)
Category Integrated Circuits (ICs) / Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description
Tape & Reel (TR) S-PQCC-J44 0.125MBps Matte Tin (Sn) interface UART 85C 16.585mm 24MHz 8Byte
PDF
/
Inventory: 9246
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 16.585mm
Length 16.585mm
Height Seated (Max) 4.57mm
Technical
With Auto Flow Control Yes
FIFO's 8 Byte
Data Encoding/Decoding Method NRZ
Communication Protocol ASYNC, BIT
Data Transfer Rate-Max 0.125 MBps
Number of Serial I/Os 2
Data Rate (Max) 230.4Kbps
External Data Bus Width 8
Low Power Mode YES
Boundary Scan NO
Address Bus Width 4
Clock Frequency 24MHz
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Number of Channels 2, DUART
Temperature Grade INDUSTRIAL
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
JESD-30 Code S-PQCC-J44
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form J BEND
Terminal Position QUAD
Voltage - Supply 2.97V~5.5V
Technology CMOS
Terminal Finish Matte Tin (Sn)
Number of Terminations 44
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Configurable GPIO, Internal Oscillator, Timer/Counter
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 44-LCC (J-Lead)
Mounting Type Surface Mount
