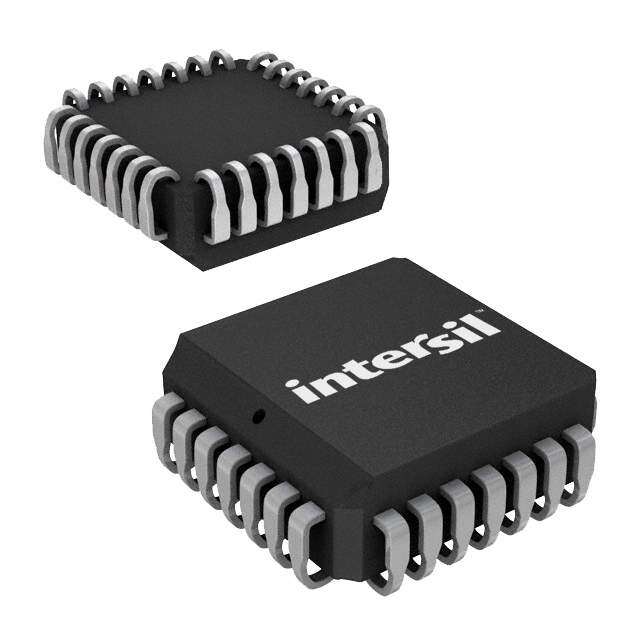

CS82C5296
RoHS
/
Package LCC
Category Integrated Circuits (ICs) / Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description
Contains Lead J BEND SERIAL IO/COMMUNICATION CONTROLLER SERIAL Discontinued UART IC 5V 1Mbps 16MHz 11.505mm
PDF
/
Buying Options
Total Price: USD $31.63
Unit Price: USD $31.6272
≥1 USD $31.6272
Inventory: 1067
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 11.505mm
Length 11.505mm
Height Seated (Max) 4.57mm
Technical
Communication Protocol ASYNC, BIT
Data Transfer Rate-Max 0.125 MBps
Bus Compatibility 80C86; 80C88
Number of Serial I/Os 1
External Data Bus Width 8
Low Power Mode YES
Boundary Scan NO
Address Bus Width 2
Data Rate 1 Mbps
Clock Frequency 16MHz
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Supply Voltage-Min (Vsup) 4.5V
Temperature Grade COMMERCIAL
Power Supplies 5V
Supply Voltage-Max (Vsup) 5.5V
Operating Temperature (Max) 70°C
Qualification Status Not Qualified
JESD-30 Code S-PQCC-J28
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 225
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Subcategory Serial IO/Communication Controllers
HTS Code 8542.31.00.01
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1
Part Status Discontinued
JESD-609 Code e0
Published 1996
Packaging Tape & Reel (TR)
Physical
Package / Case LCC
Mount Surface Mount
