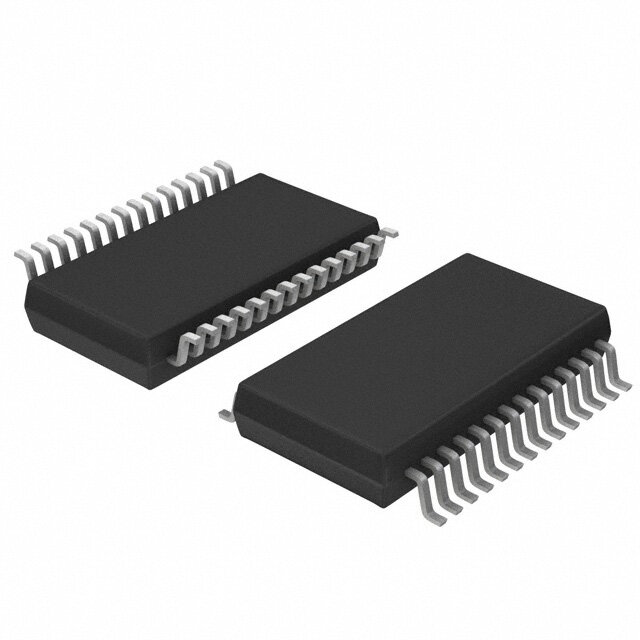

CMX860D6
RoHS
RoHS compliant
RoHS compliantPackage 28-SSOP (0.209, 5.30mm Width)
Category Integrated Circuits (ICs) / Interface - Telecom
Description
ROHS3Compliant DUAL GULL WING Active interface telecom -40C~85C 5.3mm 1.49W 9mA
PDF
/
Buying Options
Total Price: USD $5.88
Unit Price: USD $5.8767
≥1 USD $5.8767
≥10 USD $4.8222
≥100 USD $4.67115
≥500 USD $4.5201
≥1000 USD $4.37
Inventory: 9307
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.3mm
Height Seated (Max) 2mm
Technical
Telecom IC Type DTMF SIGNALING CIRCUIT
Current - Supply 9mA
Number of Circuits 1
Interface C-Bus
Power Supplies 3/5V
Qualification Status Not Qualified
Function Transceiver
JESD-30 Code R-PDSO-G28
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.65mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 2.7V~5.5V
Subcategory Other Telecom ICs
Power (Watts) 1.49W
Terminal Finish Matte Tin (Sn)
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 28-SSOP (0.209, 5.30mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
