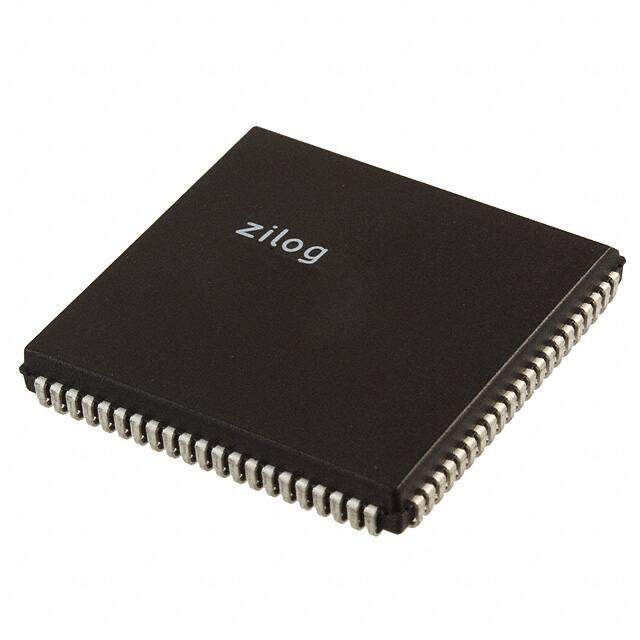

Z84C9008VEG image
Favorite
Z84C9008VEG image
Favorite

Z84C9008VEG

Zilog
RoHS
RoHS RoHS compliant
Package 84-LCC (J-Lead)
Category Integrated Circuits (ICs) / Interface - Specialized
Description IC INTERFACE SPECIALIZED 84PLCC
PDF
/
Buying Options
Total Price: USD $21.89
Unit Price: USD $21.889973
≥1 USD $21.889973
≥10 USD $20.650908
≥100 USD $19.481993
≥500 USD $18.379235
≥1000 USD $17.338909
Inventory: 1246
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 29.3116mm
Length 29.3116mm

Technical

External Data Bus Width 8
Boundary Scan NO
Address Bus Width 4
Number of Timers/Counters 4
Memory Type ROMless
Number of I/O 24
Voltage 5V
Temperature Grade INDUSTRIAL
Power Supplies 5V
Operating Supply Voltage 5V
Pin Count 84
Base Part Number Z84C90
Time@Peak Reflow Temperature-Max (s) 40
Frequency 8MHz
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Subcategory Parallel IO Port
Applications I/O Controller
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish MATTE TIN
Number of Terminations 84
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series Z80
Published 2002
Packaging Tube

Physical

Number of Pins 84
Package / Case 84-LCC (J-Lead)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
