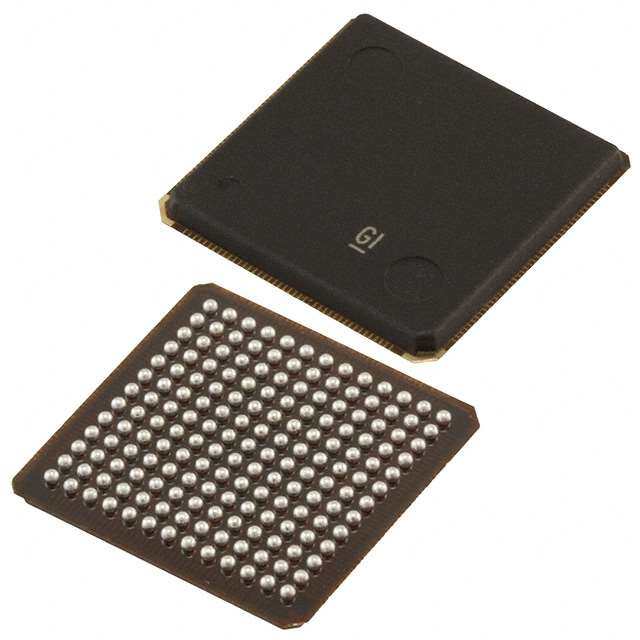

XIO2001ZGU
RoHS
RoHS compliant
RoHS compliantPackage 169-LFBGA
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC PCI-EXPRESS/BUS BRIDGE 169BGA
PDF
/
Buying Options
Total Price: USD $59.07
Unit Price: USD $59.0653
≥1 USD $59.0653
≥10 USD $48.46425
≥100 USD $46.94995
≥500 USD $45.43565
≥1000 USD $43.9204
Inventory: 1355
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 169-LFBGA
Number of Pins 169
Weight 369.989626mg
Technical
Packaging Tray
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 169
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications PCI Express to PCI Translation Bridge
Additional Feature ALSO OPERATES AT 3.3V SUPPLY
HTS Code 8542.39.00.01
Subcategory Bus Controllers
Technology CMOS
Voltage - Supply 1.35V~1.65V 3V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.5V
Terminal Pitch 0.8mm
Base Part Number IO2001
Pin Count 169
Operating Supply Voltage 1.5V
Power Supplies 1.53.3V
Temperature Grade COMMERCIAL
Interface PCI Express
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCI
Data Rate 2 Gbps
Data Bus Width 32b
Max Frequency 66MHz
Bus Compatibility VGA
Data Transfer Rate-Max 250 MBps
Dimensions
Height 1.4mm
Length 12mm
Width 12mm
Thickness 900μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
