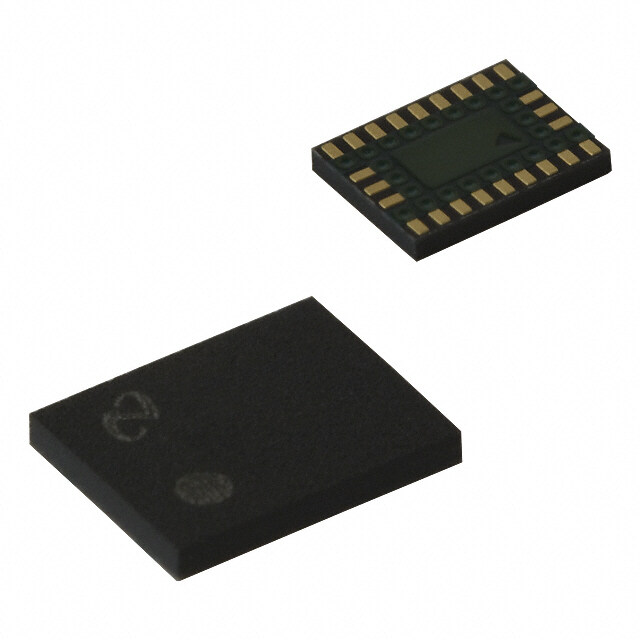

TPD12S016RKTR
RoHS
RoHS compliant
RoHS compliantPackage 24-UFQFN
Category Integrated Circuits (ICs) / Interface - Specialized
Description
ESD Suppressors Value-Line HDMI Companion Chip
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.65208
≥100 USD $0.619168
≥500 USD $0.508728
≥1000 USD $0.475552
≥3000 USD $0.420235
Inventory: 11620
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-UFQFN
Number of Pins 24
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications HDMI, I2C Buffer, ESD Protection
HTS Code 8542.39.00.01
Capacitance 750pF
Voltage - Supply 4.5V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Base Part Number TPD12S016
Pin Count 24
Supply Voltage-Max (Vsup) 3.6V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 1.1V
Number of Channels 12
Interface HDMI
Analog IC - Other Type ANALOG CIRCUIT
Dimensions
Height 550μm
Length 4mm
Width 2mm
Thickness 500μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
