DS125DF1610FBE/NOPB
RoHS
RoHS compliant

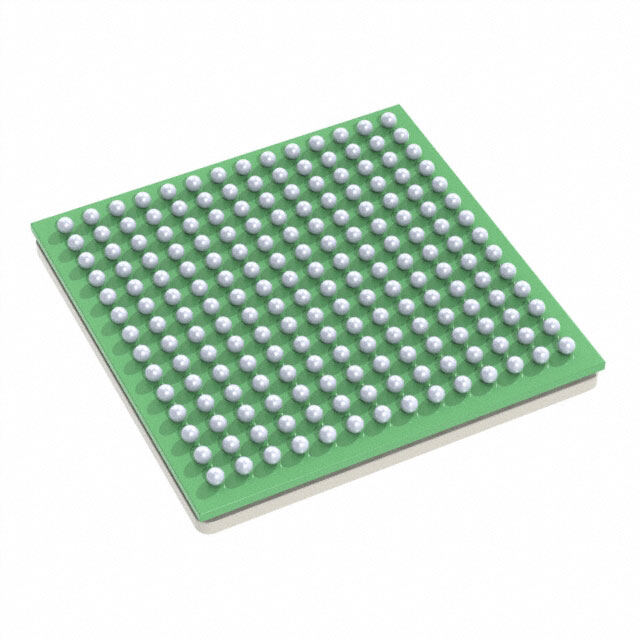

RoHS compliantPackage 196-BBGA, FCBGA
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC INTFACE SPECIALIZED 196FCBGA
PDF
/
Buying Options
Total Price: USD $50.46
Unit Price: USD $50.4602
≥1 USD $50.4602
≥10 USD $41.40385
≥100 USD $40.10995
≥500 USD $38.81605
≥1000 USD $37.52215
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 2.19mm
Width 15mm
Length 15mm
Height 2.94mm
Technical
Supply Voltage1-Max 2.625V
Supply Voltage1-Min 2.375V
Supply Voltage1-Nom 2.5V
Interface Standard GENERAL PURPOSE
Receiver Number of Bits 4
Driver Number of Bits 4
Interface IC Type LINE TRANSCEIVER
Input Characteristics DIFFERENTIAL
Differential Output YES
Number of Channels 16
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 2.625V
Operating Supply Voltage 2.5V
Base Part Number DS125DF1610
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1mm
Supply Voltage 2.5V
Number of Functions 4
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Applications Retimer
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 196
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tray
Physical
Number of Pins 196
Package / Case 196-BBGA, FCBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 16 Weeks
