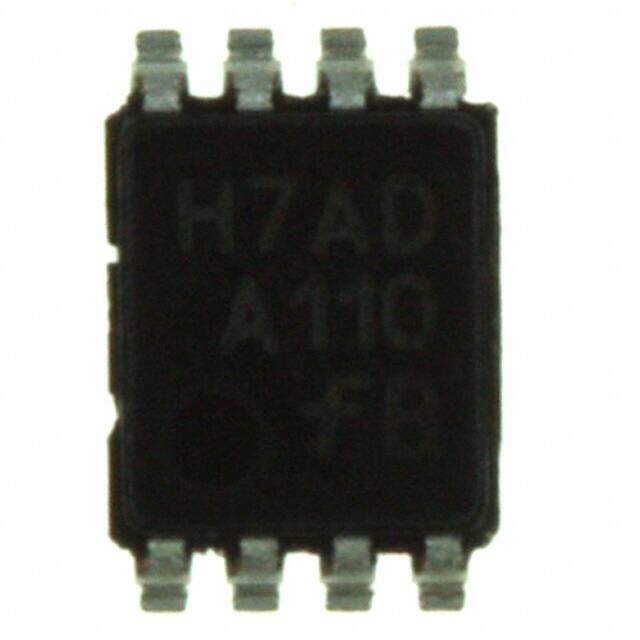

FSA110K8X
RoHS
/
Package 8-VFSOP (0.091, 2.30mm Width)
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC SWITCH AUD/WIRED-OR 8-VSOP
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
Inventory: 40941
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2mm
Length 2.3mm
Height Seated (Max) 0.9mm
Technical
Turn-Off Delay Time 2 μs
Supply Type Single
Turn On Delay Time 2 μs
Max Supply Current 15μA
Nominal Supply Current 1.5μA
Analog IC - Other Type DPST
Number of Channels 2
Supply Voltage-Min (Vsup) 2.7V
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 4.3V
Base Part Number FSA110
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 3V
Number of Functions 2
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 2.7V~4.3V
Applications USB
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin (Sn)
Resistance 2.5Ohm
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Weight 30mg
Number of Pins 8
Package / Case 8-VFSOP (0.091, 2.30mm Width)
Mounting Type Surface Mount
Mount Surface Mount
