PX1011B-EL1/N,551
RoHS
/

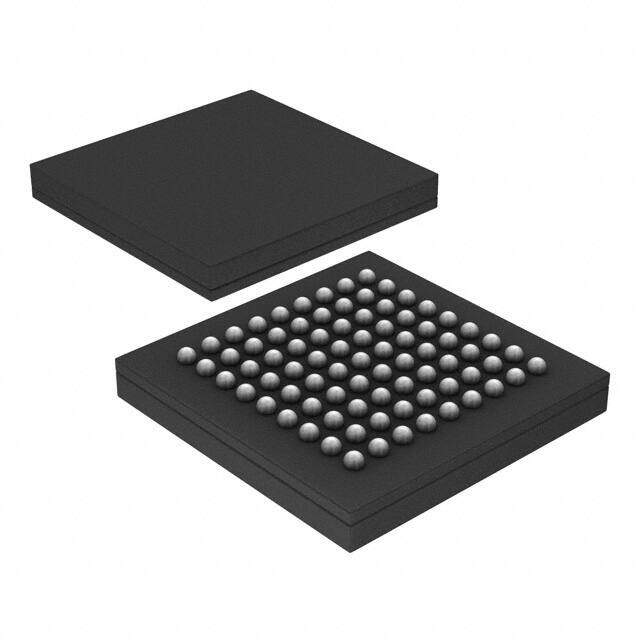

Package 81-LFBGA
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC INTFACE SPECIALIZED 81LFBGA
PDF
/
Buying Options
Total Price: USD $10.62
Unit Price: USD $10.61625
≥1 USD $10.61625
≥10 USD $8.71055
≥100 USD $8.43885
≥500 USD $8.1662
≥1000 USD $7.8945
Inventory: 1182
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 9mm
Length 9mm
Height Seated (Max) 1.6mm
Technical
Telecom IC Type INTERFACE CIRCUIT
Interface JTAG
Temperature Grade INDUSTRIAL
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B81
Pin Count 81
Base Part Number PX1011
Time@Peak Reflow Temperature-Max (s) 20
Reach Compliance Code unknown
Terminal Pitch 0.8mm
Supply Voltage 1.2V
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.2V
HTS Code 8542.39.00.01
Applications PCI Express MAX to PCI Express PHY
Number of Terminations 81
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2008
Packaging Tray
Physical
Surface Mount YES
Package / Case 81-LFBGA
Mounting Type Surface Mount
