PTN3460IBS/F1MP
RoHS
RoHS compliant

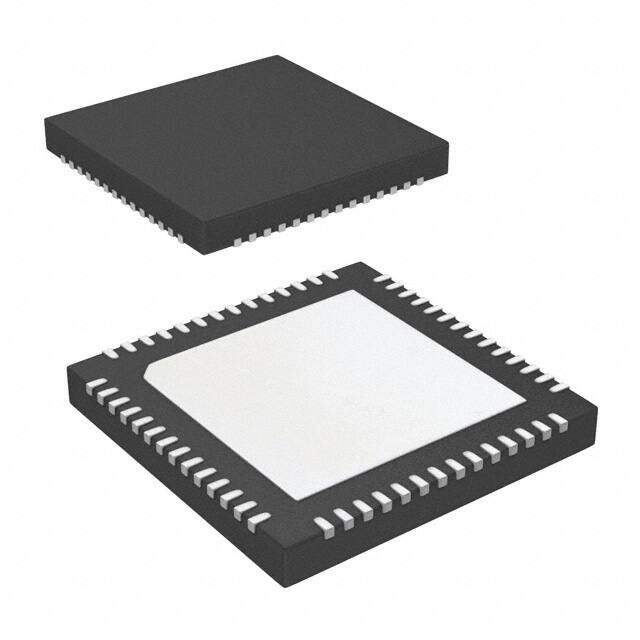

RoHS compliantPackage 56-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC BRIDGE DISP PORT-LVDS 56HVQFN
PDF
/
Buying Options
Total Price: USD $9.81
Unit Price: USD $9.813741
≥1 USD $9.813741
≥10 USD $8.709663
≥100 USD $7.691922
≥500 USD $7.84795
≥1000 USD $7.5867
Inventory: 16
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case 56-VFQFN Exposed Pad
Surface Mount YES
Technical
Packaging Cut Tape (CT)
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 56
Applications LVDS
Additional Feature ALSO REQUIRES 3.0 TO 3.6
Voltage - Supply 3.3V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 56
JESD-30 Code S-PQCC-N56
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Supply Voltage-Max (Vsup) 1.9V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 1.7V
Consumer IC Type CONSUMER CIRCUIT
Dimensions
Height Seated (Max) 1mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
