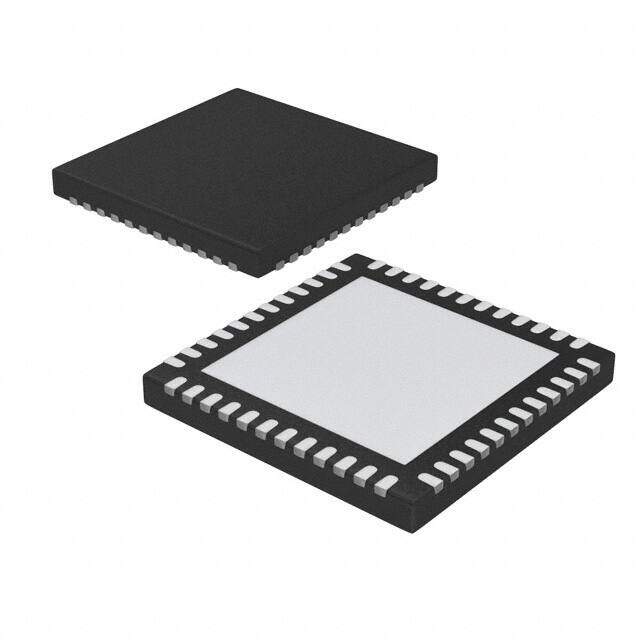

PTN3300BHF,518 image
Favorite
PTN3300BHF,518 image
Favorite

PTN3300BHF,518

NXP USA Inc.
RoHS
RoHS RoHS compliant
Package 48-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description IC DVI/HDMI LEVEL SHIFT 48HWQFN
PDF
/
Inventory: 9089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 48-WFQFN Exposed Pad
Surface Mount YES

Technical

Packaging Tape & Reel (TR)
Published 2008
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
Applications DVI, HDMI Level Switching
HTS Code 8542.39.00.01
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number PTN3300B
Pin Count 48
JESD-30 Code S-XQCC-N48
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Supply Voltage-Max (Vsup) 3.6V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 3V
Interface I2C
Consumer IC Type CONSUMER CIRCUIT

Dimensions

Height Seated (Max) 0.8mm
Length 7mm
Width 7mm

Compliance

RoHS Status ROHS3 Compliant
