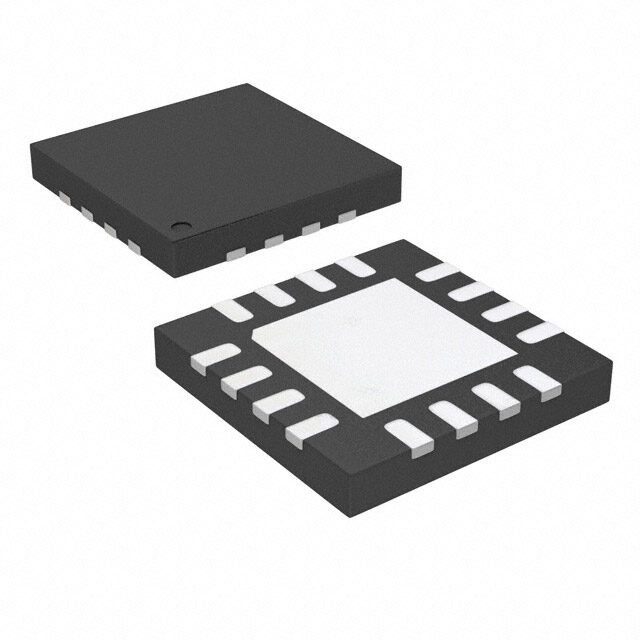

SEC1110-A5-02NC-TR
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC INTERFACE SPECIALIZED 16QFN
PDF
/
Buying Options
Total Price: USD $7.5
Unit Price: USD $7.4993
≥1 USD $7.4993
≥10 USD $6.15315
≥100 USD $5.96125
≥500 USD $5.7684
≥1000 USD $5.5765
≥1000 USD $4.99985
Inventory: 1692
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Technical
Packaging Tape & Reel (TR)
Published 2011
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
ECCN Code 3A001.A.3
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Applications Smart Card
HTS Code 8542.31.00.01
Technology CMOS
Voltage - Supply 3V~5.5V
Terminal Position QUAD
Supply Voltage 5V
Terminal Pitch 0.8mm
Base Part Number SEC1110
Pin Count 16
JESD-30 Code S-PQCC-N16
Temperature Grade COMMERCIAL
Interface SPI Serial, USB, UART
Operating Supply Current 55mA
Memory Type RAM, SRAM
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Supply Current-Max 7.5mA
Data Transfer Rate-Max 1.2 MBps
Dimensions
Height Seated (Max) 1mm
Length 5mm
Width 5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
