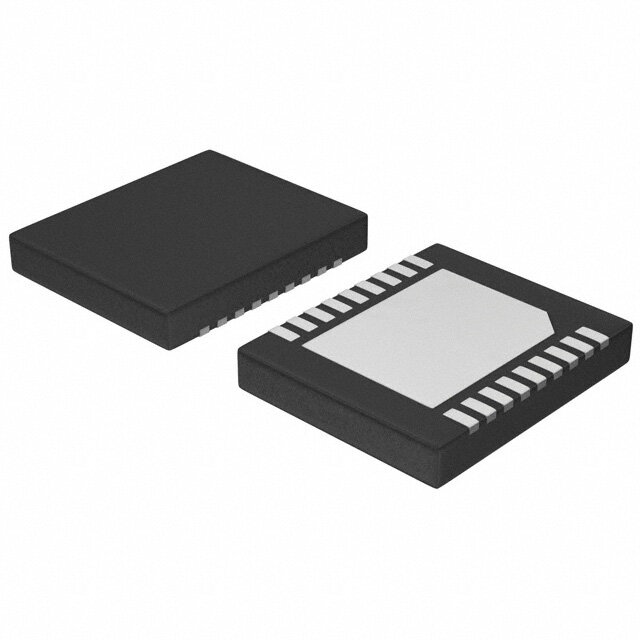

MD0101K6-G
RoHS
RoHS compliant
RoHS compliantPackage 18-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description
Circuit Protection Misc High Voltage Protection T/R Switch with Clamp Diodes
PDF
/
Buying Options
Total Price: USD $5.78
Unit Price: USD $5.7816
≥1 USD $5.7816
≥10 USD $4.8048
≥100 USD $4.3648
Inventory: 382
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Dimensions
Length 5mm
Height Seated (Max) 1mm
Technical
Telecom IC Type TELECOM CIRCUIT
Turn-Off Delay Time 20 ns
Bandwidth 100MHz
Turn On Delay Time 20 ns
Qualification Status Not Qualified
Base Part Number MD0101
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Max Power Dissipation 1.6W
HTS Code 8542.39.00.01
Applications High Voltage
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 15Ohm
Number of Terminations 18
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e4
Published 2011
Packaging Tray
Physical
Number of Pins 18
Package / Case 18-VFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 6 Weeks
