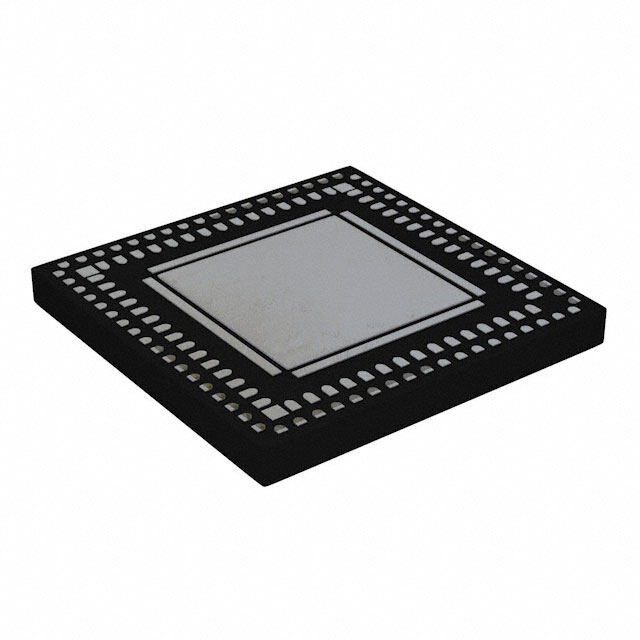

PI7C9X2G404ELZXAE
RoHS
RoHS compliant
RoHS compliantPackage 136-VFQFN Dual Rows, Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description
PCI Interface IC 4Port 4 Lane PCIe2.0 Packet Switch
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.736
≥1 USD $10.736
≥10 USD $9.87008
≥100 USD $9.461056
≥500 USD $8.336064
≥1000 USD $7.926943
≥3000 USD $7.415522
Inventory: 227
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 0.85mm
Technical
Data Transfer Rate-Max 625 MBps
Bus Compatibility PCI; SMBUS
Max Frequency 100MHz
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCI
Number of Ports 4
Interface PCI Express
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 1.1V
Operating Supply Voltage 3.3V
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 0.5mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 650mW
Applications Packet Switch, 4-Port/4-Lane
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code 3A991.A.3
Number of Terminations 136
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series ExtremeLo?
Published 2012
Packaging Tray
Physical
Number of Pins 136
Package / Case 136-VFQFN Dual Rows, Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
