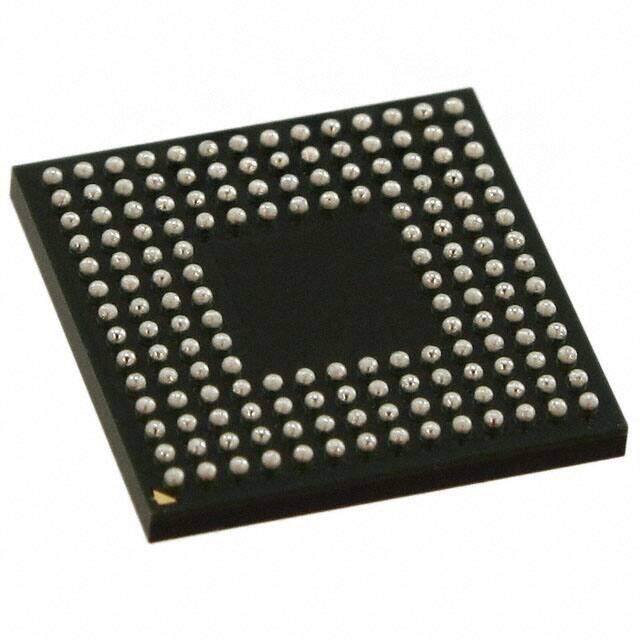

PI7C9X110BNB
RoHS
RoHS compliant
RoHS compliantPackage 160-LFBGA
Category Integrated Circuits (ICs) / Interface - Specialized
Description
PCI Bridge Chip 32Bit 66MHz 32Bit 160-Pin LFBGA
PDF
/
Buying Options
Total Price: USD $68.06
Unit Price: USD $68.0599
≥1 USD $68.0599
≥10 USD $65.93285
≥100 USD $63.80675
≥500 USD $61.6797
≥1000 USD $55.29855
Inventory: 1195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Surface Mount
Package / Case 160-LFBGA
Surface Mount YES
Number of Pins 160
Technical
Packaging Tray
Published 2017
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 160
ECCN Code EAR99
Terminal Finish TIN LEAD
Applications PCI-to-PCI Bridge
HTS Code 8542.39.00.01
Subcategory Bus Controllers
Technology CMOS
Voltage - Supply 1.8V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 240
Supply Voltage 1.8V
Terminal Pitch 0.8mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number 7C9X110
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Power Supplies 1.83.3V
Temperature Grade INDUSTRIAL
Interface I2C
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCI
Clock Frequency 100MHz
Address Bus Width 16
Bus Compatibility PCI
Dimensions
Height Seated (Max) 1.4mm
Length 12mm
Width 12mm
Compliance
RoHS Status ROHS3 Compliant
