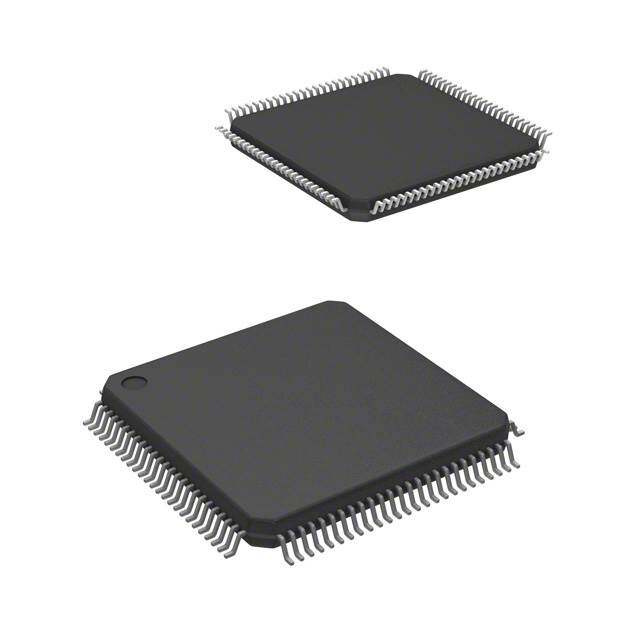

ADV7511KSTZ
RoHS
/
Package LQFP
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC XMITTER HDMI 12BIT 100LQFP
PDF
/
Buying Options
Total Price: USD $8.32
Unit Price: USD $8.32295
≥1 USD $8.32295
≥10 USD $6.82955
≥100 USD $6.6158
≥500 USD $6.403
≥1000 USD $6.18925
≥3000 USD $5.54895
Inventory: 14606
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mount Surface Mount
Package / Case LQFP
Number of Pins 100
Technical
JESD-609 Code e3
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 100
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Number of Functions 1
Pin Count 100
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Number of Channels 8
Interface HDMI
Max Supply Voltage 5V
Resolution 1.5 B
Sampling Rate 225 Msps
Consumer IC Type CONSUMER CIRCUIT
Dimensions
Height 1.45mm
Length 14mm
Width 14mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Contains Lead
