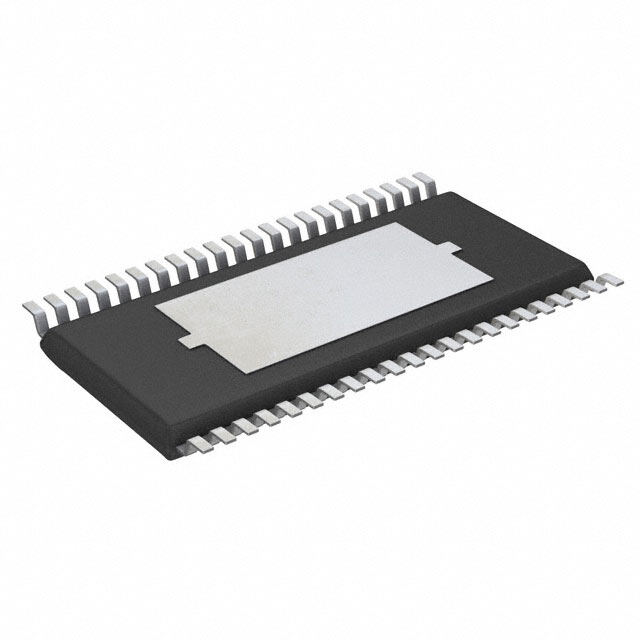

UCC5618PWPTRG4 image
Favorite
UCC5618PWPTRG4 image
Favorite

UCC5618PWPTRG4

Texas Instruments
RoHS
RoHS RoHS compliant
Package 28-PowerTSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Interface - Signal Terminators
Description Contains Lead Obsolete BICMOS GULL WING SCSI Terminator 0C~70C 110Ohm 440mA 1.2mm
PDF
/
Inventory: 2290
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-PowerTSSOP (0.173, 4.40mm Width)
Number of Pins 28

Technical

Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 18
ECCN Code EAR99
Type SCSI
Resistance 110Ohm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code 8542.39.00.01
Subcategory Bus Terminators
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 4.75V
Terminal Pitch 0.65mm
Base Part Number UCC5618
Pin Count 28
Power Supplies 4.75V
Max Supply Voltage 5.25V
Min Supply Voltage 4V
Nominal Supply Current 440mA
Differential Output NO
Number of Signal Lines 18
Pull-up Resistance-Nom 110Ohm

Dimensions

Height Seated (Max) 1.2mm
Length 9.7mm
Width 4.4mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
