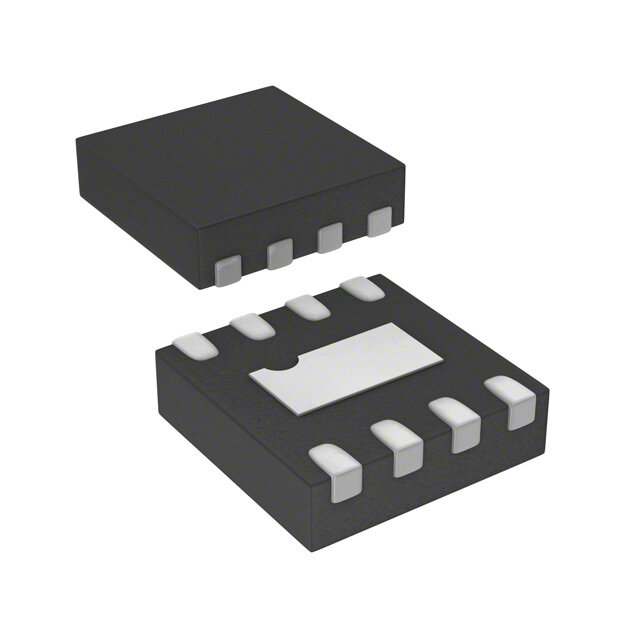

TUSB501DRFR
RoHS
RoHS compliant
RoHS compliantPackage 8-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Signal Buffers, Repeaters, Splitters
Description
Nickel/Palladium/Gold (Ni/Pd/Au) TUSB501 Tape & Reel (TR) CMOS signal splitter 3.3V 0.5mm -40C~85C 43.8mA
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.1477
≥1 USD $4.1477
≥10 USD $3.40385
≥100 USD $3.29745
≥500 USD $3.19105
≥1000 USD $3.08465
Inventory: 48005
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 16 hours ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WFDFN Exposed Pad
Number of Pins 8
Weight 10.886217mg
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
ECCN Code EAR99
Type Buffer, ReDriver
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications USB 3.0
Technology CMOS
Voltage - Supply 3V~3.6V
Signal Conditioning Input Equalization, Output De-Emphasis
Capacitance - Input 1.25pF
Data Transfer Rate-Max 625 MBps
Delay Time 290ps
Data Rate (Max) 5Gbps
Supply Current-Max 65mA
Operating Supply Current 43.8mA
Number of Channels 1
Base Part Number TUSB501
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 750μm
Width 2mm
Length 2mm
Height 800μm
