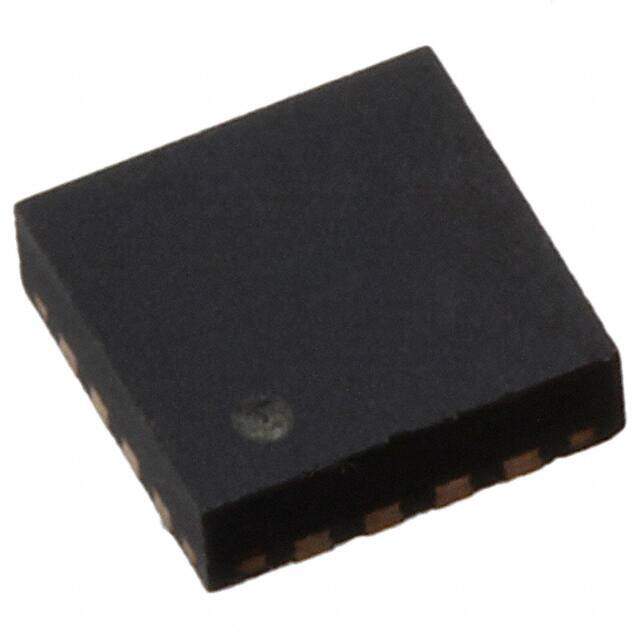

CAP1208-1-A4-TR
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Sensor, Capacitive Touch
Description
e3 CAP1208 Buttons 2014 capacitive touch sensor 3mm 500muA 3V~5.5V -40C~125C
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.9152
≥100 USD $0.8184
Inventory: 8564
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Number of Pins 16
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Termination SMD/SMT
Type Buttons
Terminal Finish Matte Tin (Sn)
Voltage - Supply 3V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number CAP1208
Operating Supply Voltage 5V
Supply Voltage-Min (Vsup) 3V
Number of Channels 8
Interface I2C, SMBus
Operating Supply Current 500μA
Nominal Supply Current 500μA
Number of Inputs 8
Touchscreen Capacitive
Proximity Detection No
Dimensions
Height Seated (Max) 0.9mm
Length 3mm
Width 3mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
