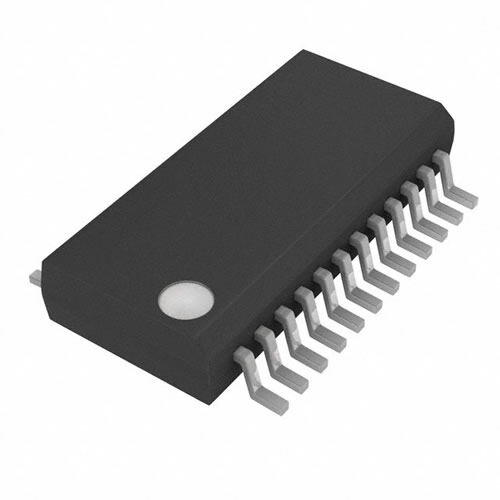

XTR108EAG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Interface - Sensor and Detector Interfaces
Description
interface detectors 5.5V 20mA 8.65mm -40C
PDF
/
Buying Options
Total Price: USD $2.79
Unit Price: USD $2.7873
≥1 USD $2.7873
≥10 USD $2.28665
≥100 USD $2.2154
≥500 USD $2.14415
≥1000 USD $2.0729
Inventory: 15182
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SSOP
Number of Pins 24
Weight 129.500622mg
Technical
JESD-609 Code e4
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 24
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.33.00.01
Subcategory Instrumentation Amplifier
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5.1V
Terminal Pitch 0.635mm
Pin Count 24
Output Type Voltage
Temperature Grade INDUSTRIAL
Interface 2-Wire, SPI, Serial
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Operating Supply Current 20mA
Current - Output 20mA
Voltage - Output 4.5V
Amplifier Type INSTRUMENTATION AMPLIFIER
Current - Input Bias 50pA
Voltage Gain-Min 6.25
Voltage Gain-Nom 12.5
Voltage Gain-Max 400
Dimensions
Height Seated (Max) 1.75mm
Length 8.65mm
Width 3.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
