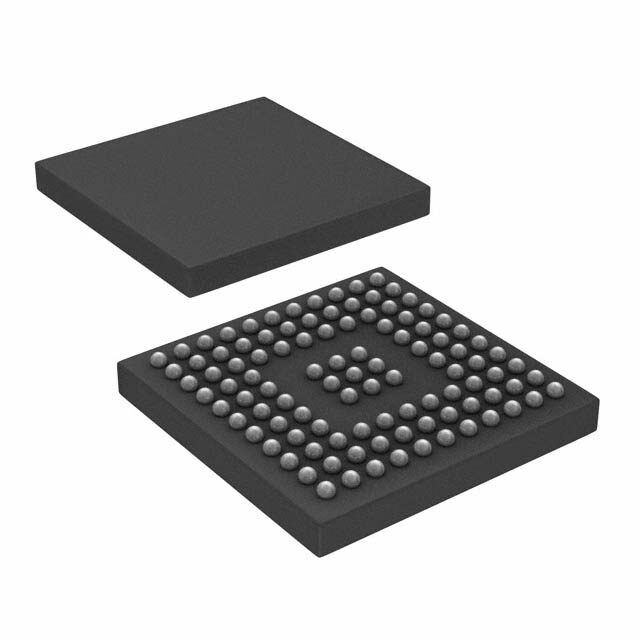

AD9992BBCZ
RoHS
RoHS compliant
RoHS compliantPackage 105-LFBGA, CSPBGA
Category Integrated Circuits (ICs) / Interface - Sensor and Detector Interfaces
Description
interface detectors 2V 27mA 8mm -25C~85C
PDF
/
Buying Options
Total Price: USD $14.3
Unit Price: USD $14.3032
≥1 USD $14.3032
≥10 USD $11.7363
≥100 USD $11.3696
≥500 USD $11.0029
≥1000 USD $10.6362
Inventory: 1170
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8mm
Length 8mm
Height Seated (Max) 1.4mm
Technical
Current - Supply 27mA
Input Type Logic
Supply Voltage-Min (Vsup) 1.6V
Supply Voltage-Max (Vsup) 2V
Qualification Status COMMERCIAL
JESD-30 Code S-PBGA-B105
Pin Count 105
Time@Peak Reflow Temperature-Max (s) 40
Reach Compliance Code unknown
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish TIN SILVER COPPER
Type CCD Signal Processor, 12-Bit
Number of Terminations 105
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Surface Mount YES
Package / Case 105-LFBGA, CSPBGA
Mounting Type Surface Mount
