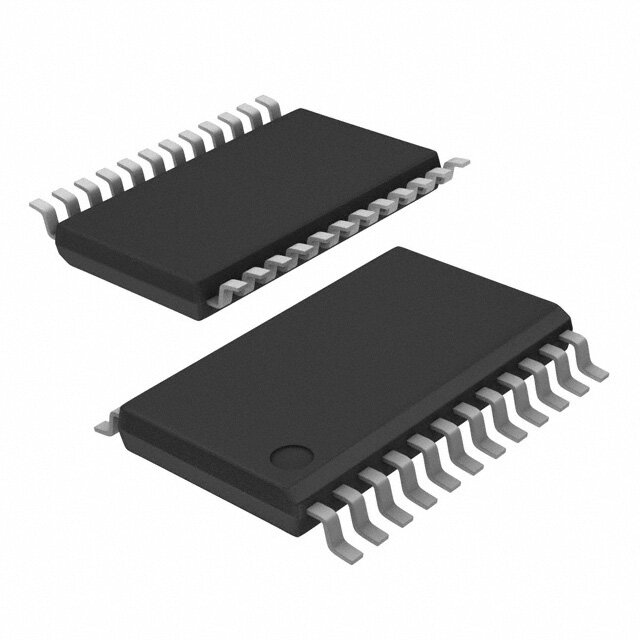

CMX469AE2
RoHS
RoHS compliant
RoHS compliantPackage 24-TSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Interface - Modems - ICs and Modules
Description
24-TSSOP (0.173 4.40mm Width) 2001 8542.39.00.01 FSK IC modem 3/5V 4.4mm 4.8Mbps
PDF
/
Buying Options
Total Price: USD $25.13
Unit Price: USD $25.1328
≥1 USD $25.1328
≥10 USD $20.0552
≥100 USD $17.0984
≥500 USD $14.036
Inventory: 1226
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.4mm
Length 7.8mm
Height Seated (Max) 1.2mm
Technical
Data Format FSK
Baud Rate 4.8k
Telecom IC Type MODEM
Data Rate 4.8 Mbps
Temperature Grade INDUSTRIAL
Power Supplies 3/5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 2.7V~5.5V
Technology CMOS
Subcategory Modems
HTS Code 8542.39.00.01
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Physical
Surface Mount YES
Package / Case 24-TSSOP (0.173, 4.40mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
