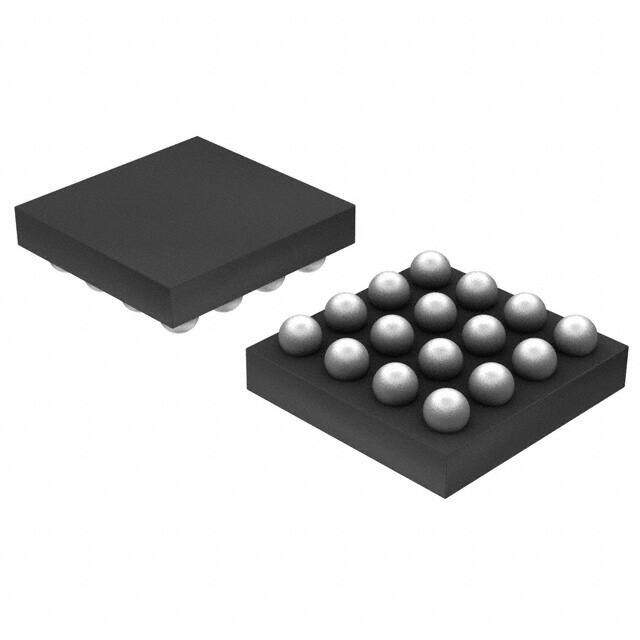

TCA7408ZSZR
RoHS
RoHS compliant
RoHS compliantPackage 16-UFBGA, CSPBGA
Category Integrated Circuits (ICs) / Interface - I/O Expanders
Description
TCA7408 Cut Tape (CT) LIFEBUY (Last Updated: 2days ago) Obsolete io expander 1.8V 2mm 400kHz 10mA
PDF
/
Buying Options
Total Price: USD $14.77
Unit Price: USD $14.7668
≥1 USD $14.7668
≥10 USD $12.1163
≥100 USD $11.7382
≥500 USD $11.35915
≥1000 USD $10.9801
Inventory: 1513
Minimum: 1
-
+
Technical Details
Technical
Voltage - Supply 1.65V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TCA7408
Pin Count 16
Qualification Status Not Qualified
Output Type Push-Pull
Interface I2C, SMBus
Number of I/O 8
Number of Ports 1
Number of Bits 8
Clock Frequency 400kHz
Supply Current-Max 0.02mA
Interrupt Output Yes
Current - Output Source/Sink 10mA
Technology CMOS
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Pbfree Code yes
Feature POR
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Dimensions
Height 550μm
Length 2mm
Width 2mm
Thickness 435μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 16
Surface Mount YES
Package / Case 16-UFBGA, CSPBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status LIFEBUY (Last Updated: 2 days ago)
