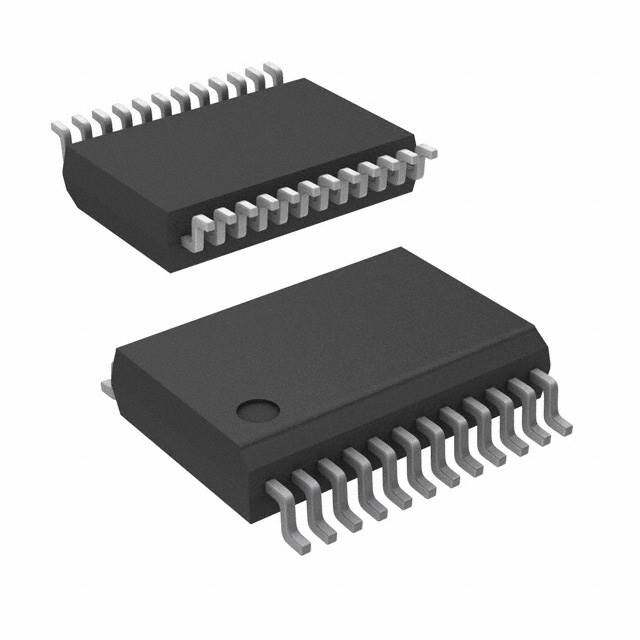

PCF8575CDBE4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Interface - I/O Expanders
Description
SSOP ACTIVE (Last Updated: 5days ago) e4 RoHS Compliant io expander 5.5V 8.2mm 400kHz 10muA
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 28
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Package / Case SSOP
Surface Mount YES
Number of Pins 24
Weight 172.39345mg
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 24
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Parallel IO Ports
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Terminal Pitch 0.65mm
Frequency 400kHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 24
Number of Outputs 16
Qualification Status Not Qualified
Power Supplies 5V
Temperature Grade INDUSTRIAL
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Number of I/O 16
Number of Ports 2
Nominal Supply Current 10μA
uPs/uCs/Peripheral ICs Type PARALLEL IO PORT, GENERAL PURPOSE
Number of Bits 16
Frequency (Max) 400kHz
Dimensions
Height 2mm
Length 8.2mm
Width 5.3mm
Thickness 1.95mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
