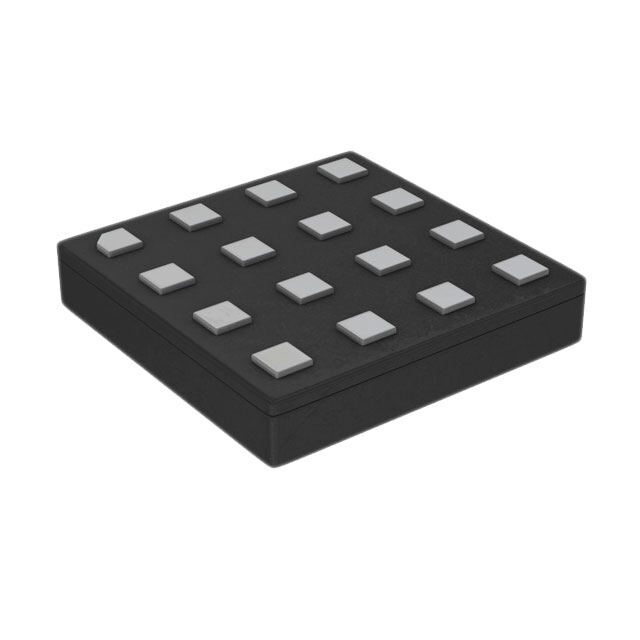

PCAL6408AEX1Z
RoHS
RoHS compliant
RoHS compliantPackage 16-XFLGA
Category Integrated Circuits (ICs) / Interface - I/O Expanders
Description
Tape & Reel (TR) Active I2C SMBus S-PBGA-B16 io expander 1.8V 1.6mm 400kHz 10mA 25mA
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.431944
≥1 USD $0.431944
≥10 USD $0.355796
≥30 USD $0.319035
≥100 USD $0.280961
≥500 USD $0.258641
≥1000 USD $0.246825
Inventory: 1134
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 16-XFLGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2010
Feature POR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Technology CMOS
Voltage - Supply 1.65V~5.5V
Terminal Position BOTTOM
Terminal Form BU
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PBGA-B16
Output Type Open Drain, Push-Pull
Interface I2C, SMBus
Number of I/O 8
Number of Ports 1
Clock Frequency 400kHz
Interrupt Output Yes
Current - Output Source/Sink 10mA 25mA
Dimensions
Height Seated (Max) 0.4mm
Length 1.6mm
Width 1.6mm
Compliance
RoHS Status ROHS3 Compliant
