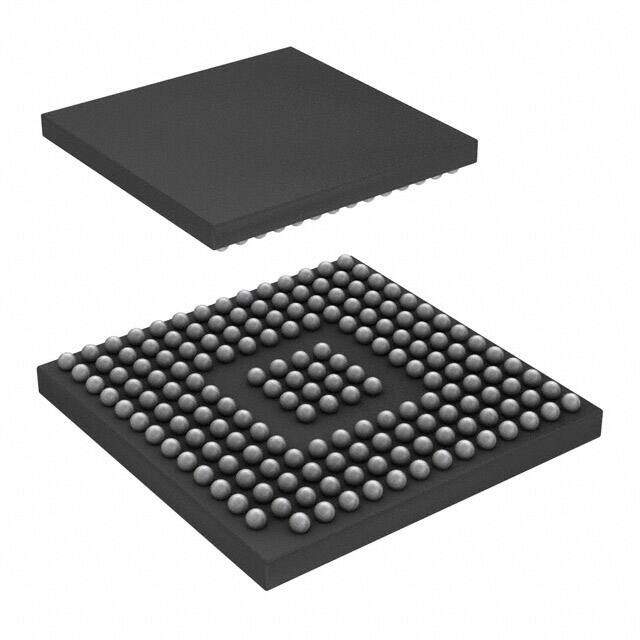

TUSB1310ZAY
RoHS
RoHS compliant
RoHS compliantPackage 175-LFBGA
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 TUSB1310 Tray USB 3.0 interface driver 0.8V 0.002A 1.4mm 5Gbps
PDF
/
Buying Options
Total Price: USD $13.04
Unit Price: USD $13.0416
≥1 USD $13.0416
≥10 USD $11.98384
≥100 USD $11.486816
≥500 USD $10.120933
≥1000 USD $9.624199
≥3000 USD $9.00328
Inventory: 984
Minimum: 1
-
+
Technical Details
Dimensions
Thickness 900μm
Width 12mm
Length 12mm
Height 1.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Technical
Out Swing-Min 0.8 V
Output Low Current-Max 0.002A
USB USB 3.0
Supply Voltage1-Nom 1.8V
ESD Protection Yes
Receiver Hysteresis 270mV
Driver Number of Bits 1
Number of Drivers/Receivers 1/1
Protocol USB 3.0
Output Polarity TRUE
Differential Output YES
Output Characteristics DIFFERENTIAL
Data Rate 5 Gbps
Number of Ports 1
Pin Count 175
Base Part Number TUSB1310
Terminal Pitch 0.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.1V 1.8V 3.3V
Subcategory Line Driver or Receivers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Transceiver
ECCN Code EAR99
Number of Terminations 175
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e1
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 175
Package / Case 175-LFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 5 days ago)
