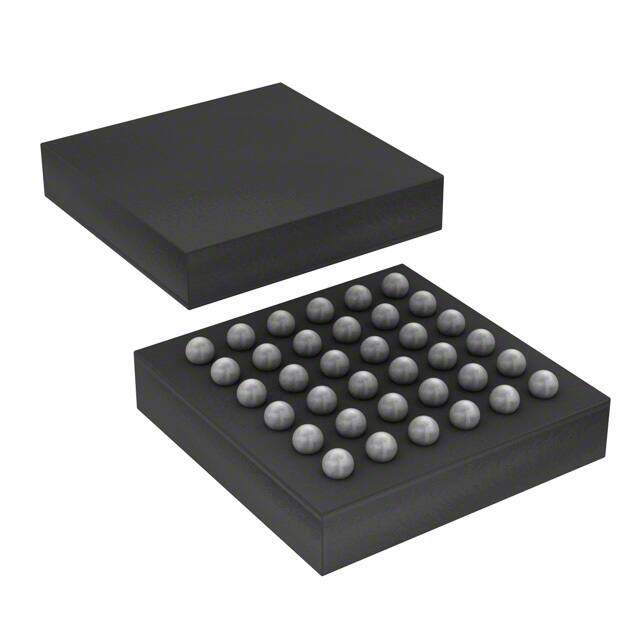

TUSB1211A1ZRQ
RoHS
RoHS compliant
RoHS compliantPackage 36-VFBGA
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 TUSB1211 Bulk USB 2.0 interface receiver 3.6V 1mm 480Mbps -40C~85C
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.96805
≥1 USD $0.96805
≥10 USD $0.7942
≥100 USD $0.7695
≥500 USD $0.7448
≥1000 USD $0.7201
Inventory: 1144
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 740μm
Width 3.5mm
Length 3.5mm
Height 1mm
Technical
USB USB 2.0
Supply Voltage1-Nom 3.6V
ESD Protection Yes
Number of Transceivers 1
Interface Standard GENERAL PURPOSE
Receiver Number of Bits 1
Driver Number of Bits 1
Number of Drivers/Receivers 8/8
Input Characteristics STANDARD
Protocol USB 2.0
Differential Output NO
Data Rate 480 Mbps
Operating Supply Voltage 3.6V
Pin Count 36
Base Part Number TUSB1211
Terminal Pitch 0.5mm
Supply Voltage 3.6V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.7V~4.8V
Subcategory Line Driver or Receivers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Transceiver
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 36
Surface Mount YES
Package / Case 36-VFBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
