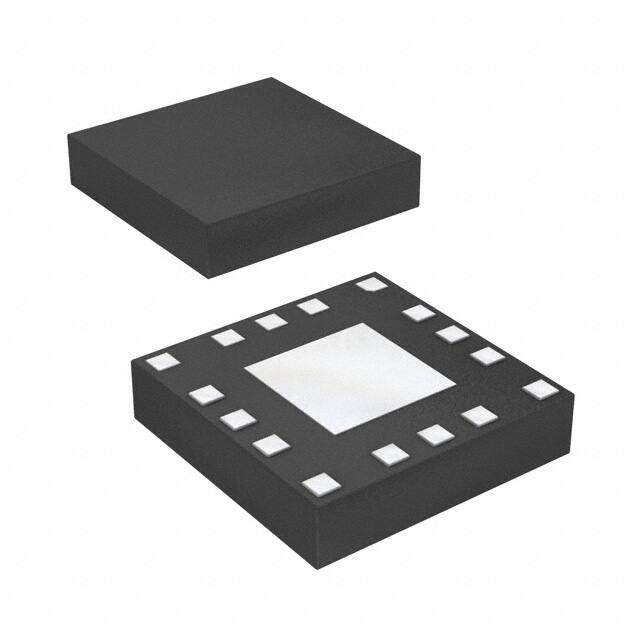

TUSB1105RTZR
RoHS
RoHS compliant
RoHS compliantPackage 16-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 TUSB1105 Tape & Reel (TR) IT REQUIRES 3.3V SUPPLY interface transceiver 450mV 0.002A 800mum 1.5Mbps
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.9712
≥1 USD $1.9712
≥10 USD $1.7732
≥100 USD $1.673056
≥500 USD $1.425512
≥1000 USD $1.338515
≥3000 USD $1.17121
Inventory: 1249
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 20 hours ago)
Physical
Mounting Type Surface Mount
Package / Case 16-UFQFN Exposed Pad
Surface Mount YES
Number of Pins 16
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Type Transceiver
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature IT REQUIRES 3.3V SUPPLY
Packing Method TR
Technology CMOS
Voltage - Supply 1.65V~3.6V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Base Part Number TUSB1105
Pin Count 16
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 4V
Operating Supply Current 6mA
Load Capacitance 600pF
Number of Ports 1
Nominal Supply Current 8mA
Output Current 2mA
Number of Bits 1
Family USB
Data Rate 1.5Mbps
Output Characteristics 3-STATE
Output Polarity TRUE
Protocol USB 2.0
Max I(ol) 0.002 A
Number of Drivers/Receivers 1/1
Duplex Half
Receiver Hysteresis 450mV
ESD Protection Yes
Count Direction UNIDIRECTIONAL
USB USB 2.0
Translation N/A
Dimensions
Height 800μm
Length 3mm
Width 3mm
Thickness 750μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
